HDMI Game Capture 1080P HD Video Capture Recorder Box for XBOX One 360 PS3WII U ezcap280PB
-One button record
- Stand along, no PC required
- Interface: USB host for USB Flash disk or USB hard disk - Recording Format: H.264 - With both HDMI and YPBPR input
Input: HDMI, or Component Video and Audio L/R, up to 1080P. Extral 3.5mm audio. - Output: HDMI and USB host.
- With HDMI output pass-through for monitoring - Power Supply: DC 5V/2A - Dimension: 110 * 75 * 27 mm - Weight: 135g
The ezcap280PB HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.
ezcap280PA HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better.
Capture 1080P video through HDMI or YPBPR from game consoler ,STB,DVD or other video source, stand along, no PC required, Simply press the recorder button, save to USB flash drive or USB hard disk.

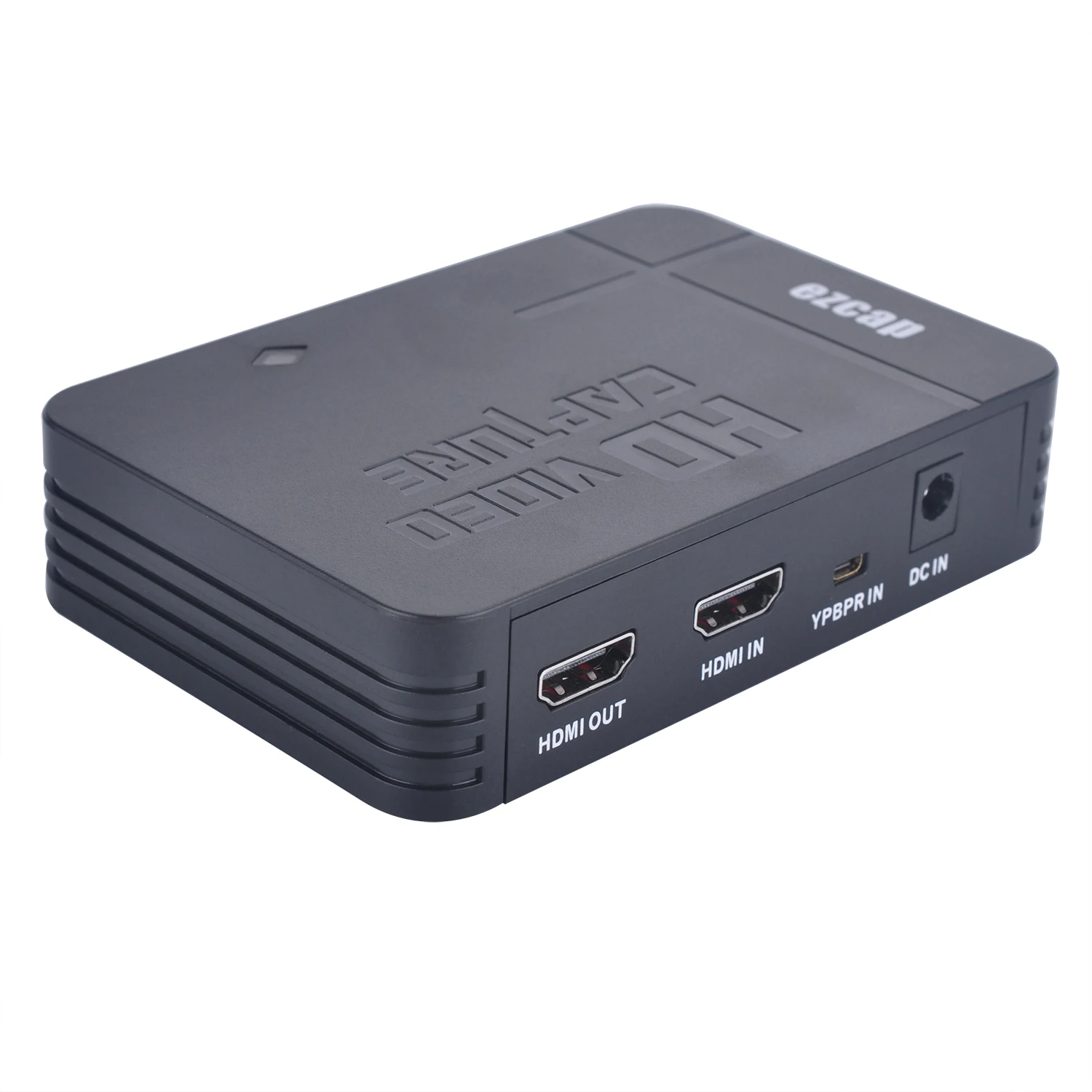

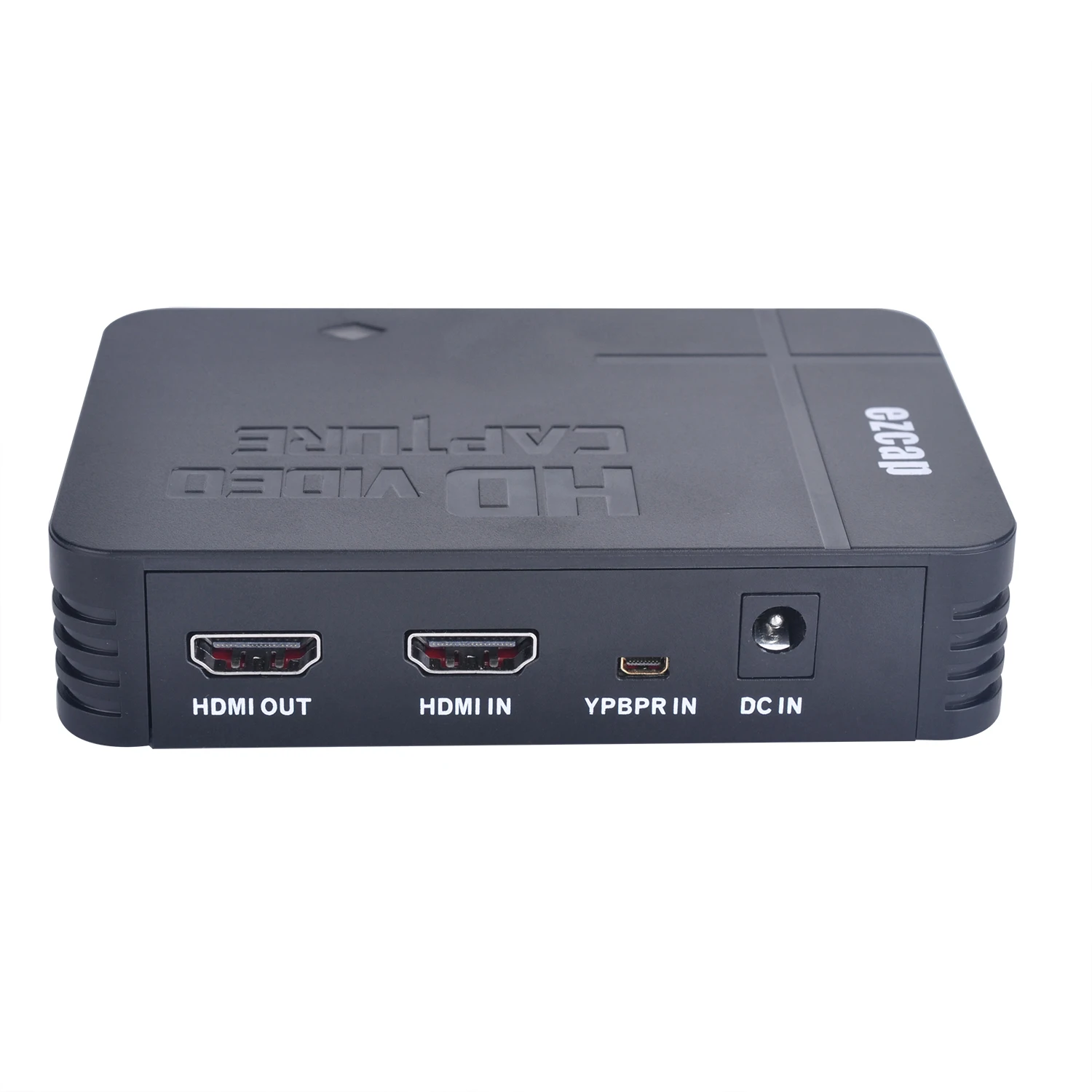

1, Interface: USB 2.0 Host 2, Video Input: Digital: HDMI Analog: Component Video 3, Audio Input: Digital: HDMI Analog: RCA L/R, 3.5mm microphone 4, Video Output: HDMI (Pass-through from Component and HDMI Input) 5, Audio Output: Digital: HDMI (Pass-through from HDMI Input) Analog: 3.5mm Stereo (Pass-through from HDMI and 3.5mm Audio Input)
6, Applicable Connections with Mainstream Game Consoles: HDMI: WiiU, Xbox 360, Xbox One, PS4 Component :WiiU, Xbox 360, PS3
7, Resolution: Input/ Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
- ezcap280PB 1080P HDMI/YPbPr Recorder - Component video and L/R audio Cable - Power supply - Manual - Video editing software CD
How to play:
1, Connect power with DC adaptor
2, With component cable connect to PS3 or other source .
3, Use HDMI cable connect Xbox or other source.
4, With HDMI cable connect to monitor

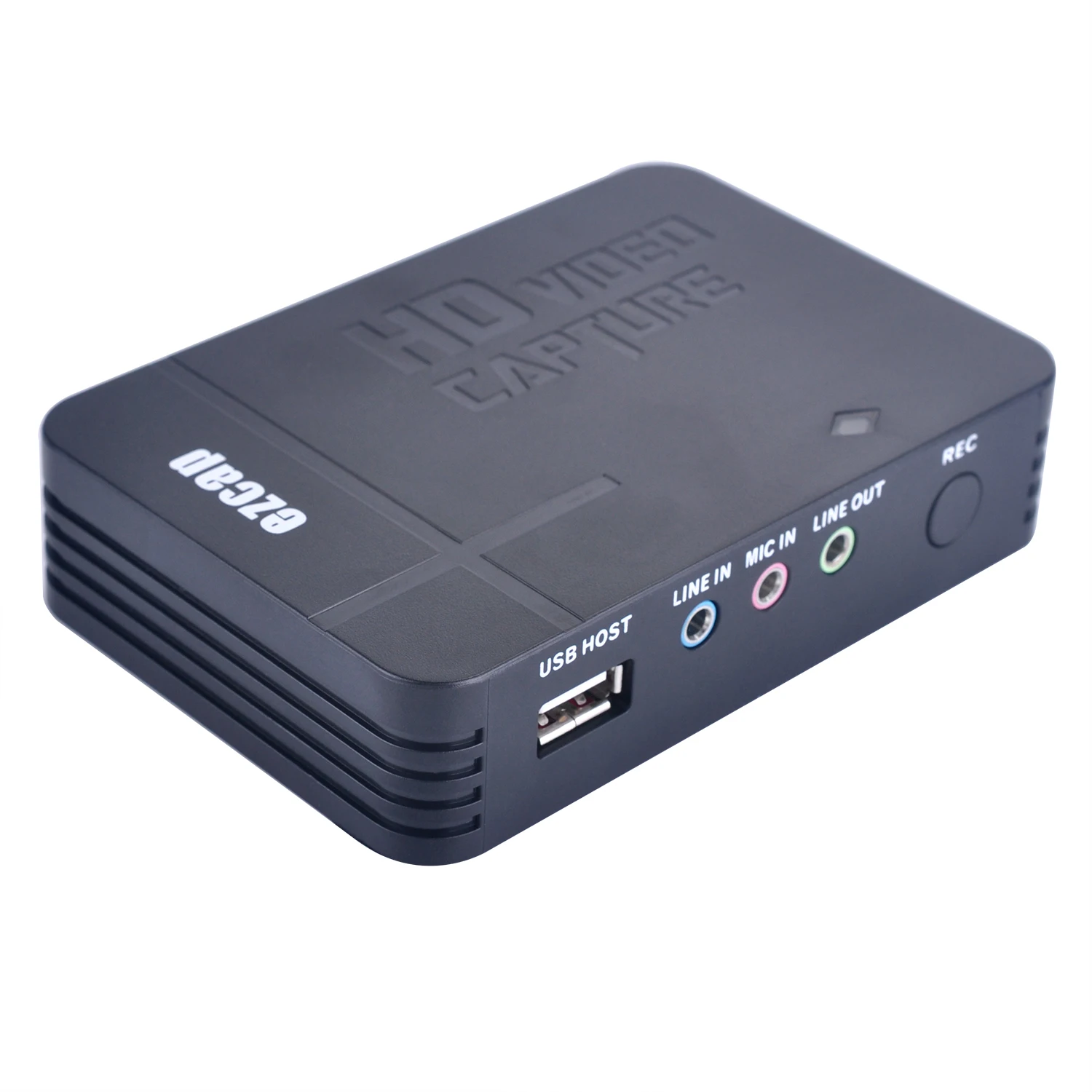

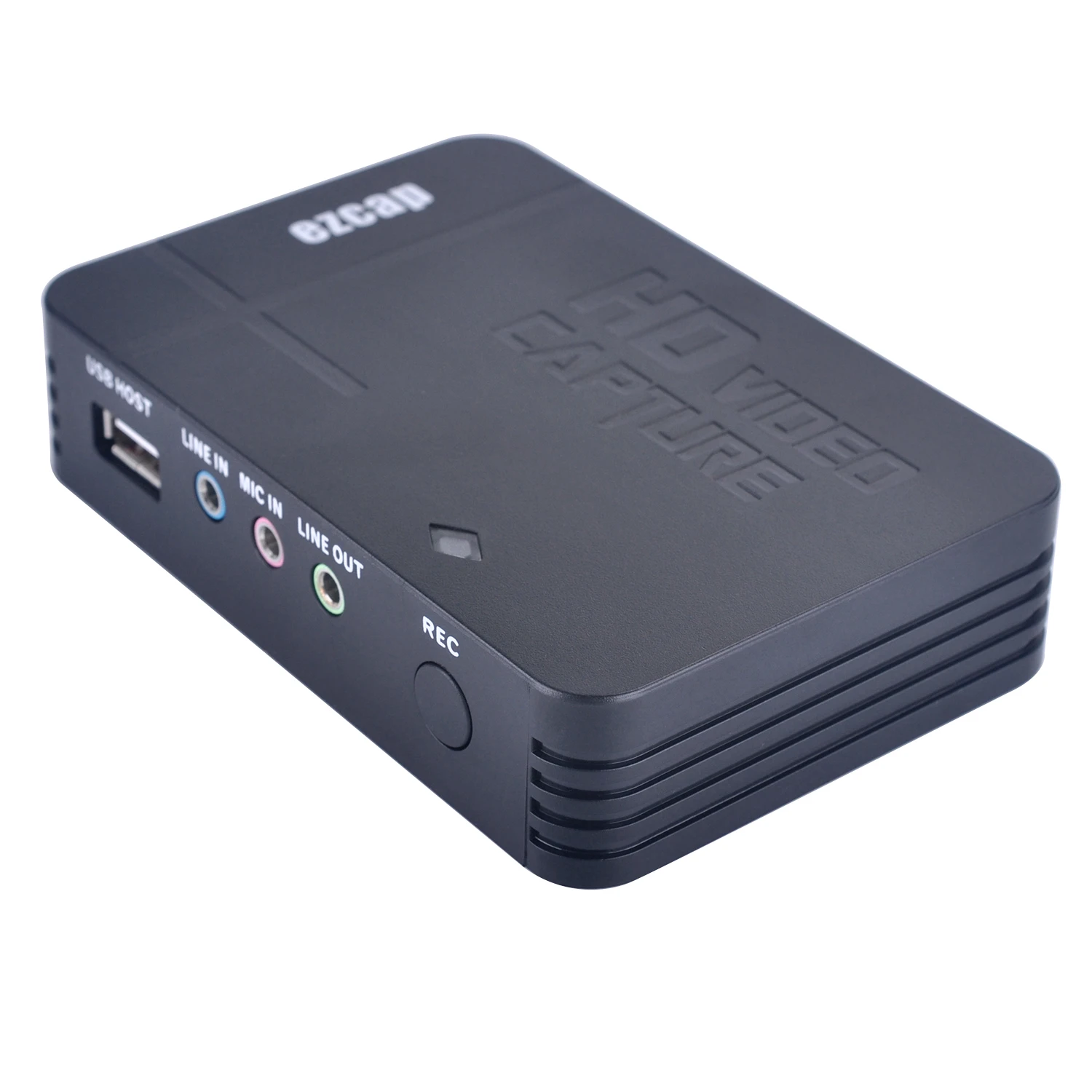

5, The “LINE OUT” is for connect to speaker or earphone.
6, You can connect your microphone to record your comment when play game.
7, Plug an USB disk on.
8, If you want record from computer (game or video) with DVI port, you can use a DVI to HDMI cable to connect, and the line out of computer connect to line in of ezcap280, like following picture:
9, Press the REC button to capture the playing video, you will see the LED indicator turn red from green. Press REC button again to stop capturing, will see LED indicator flash few seconds then turn green.
10, After you stop recording, connect the USB flash to computer, will see the recorded files: for 1080P recording, file will be Encode_1080P_1, for 720 or 480p recording, file will be Encode_1.
Every record/stop operation will create a different recording file: Encode_1080P_1, Encode_1080P_2, Encode_1080P_3… and so on.
The max size per file will be around 1.95GB (around 15 minutes for 1080p video), when you record a video more than 1.95GB(15 minutes), ezcap280 will partition it in more than 1 file, for example: if you record a 45 minutes 1080p video by one click recording, you will see 3 files: Encode_1080P_1, Encode_1080P_1_1, Encode_1080P_1_2…and so on
11, Update firmware: you may need update firmware for this device for some reason. Copy the firmware file in to USB disk, power off the device (unplug power jack), plug USB disk to device, power on, the indicator will flash 7~8 seconds, then the update is finished.
12, After long time using, you will see the number of recording file become too big, for example Encode_1080P_234, but you want it be start from Encode_1080P_0, to do it you just keep press record button(before power on), then plug the power jack to power on the device, after 3 seconds, the file number will start from 0.
