Stand alone HDMI Lecture Capture with Built-in Microphone ezcap289

FOB Reference Price:Get Latest Price
US $10-85 / Sets | 50 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ezcap
Model Number:
ezcap289
Place of Origin:
Guangdong, China (Mainland)
Interface Type:
USB 2.0 Host
Video Input:
HDMI, VGA
Audio Input:
HDMI, 3.5mm Line In
Video Output:
HDMI VGA
Audio Output:
Digital: HDMI (Pass through from HDMI and VGA), 3.5mm Line Out
Codec:
Hardware H.264 encoder
Storage Media:
USB Drive Stick, Portable Hard Disk
video output:
720P or 1080P
SupplyAbility
SupplyAbility:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
gift box
10pcs/CTN
G.W.:12KG
Port
shenzhen
Lead Time :
Shipped in 5 days after payment
Stand alone HDMI  Lecture Capture with Built-in Microphone ezcap289

General function:
-With built-in 360 degree microphone.
-HD HDMI / VGA pass-through
-Record entire lesson with voice for sharing by pressing one button.
-With one-touch mute control.


The best lecture capturing solution for flipped classrooms.

As flipped classroom and video lesson continue to surge in popularity, more teachers are required to record their own lectures. But the truth is, teaching is hard enough, so why not be efficient at recording it? The ezcap289 is here for the job so you can focus on teaching. With a built-in 360 degree microphone and HD video capturing, your voice and lessons are flawlessly recorded with just a press of a button.



Easily capture lessons with Chromebook.

Easily capture all digital lesson contents from your Chromebook, with combined voice recording from the integrated microphone to save full lessons and presentations.



Quick and simple.

Simply connect your computer via HDMI or VGA, press the record button, and your entire lesson will be recorded and ready to share.



No complicated software.

Since the ezcap289 combines video and audio into one file on an on-board SD card, there is no complicated video editing or capture software needed to produce full, rich lessons.



Less noise, more smile.

The integrated microphone includes noise canceling technology to effectively capture the teacher’s voice, and reduce irrelevant background noises for clear, pleasant audio.



Convenient mute control.

One-touch mute control allows the teacher to mute the microphone while other audio is playing, or side conversations are taking place to maintain privacy.





With ezcap289 Lecture Capture, just press one button to record digital lesson contents or meeting presentations. with integrated microphone, recording HD lecture combined with voice. It is plug & Play, standalone working no need PC.





The integrated microphone includes noise canceling technology to effectively capture the teacher's voice, and reduce irrelevant background noises for clear, pleasant audio. With one switch button, easily set the gain of microhone for different size room.

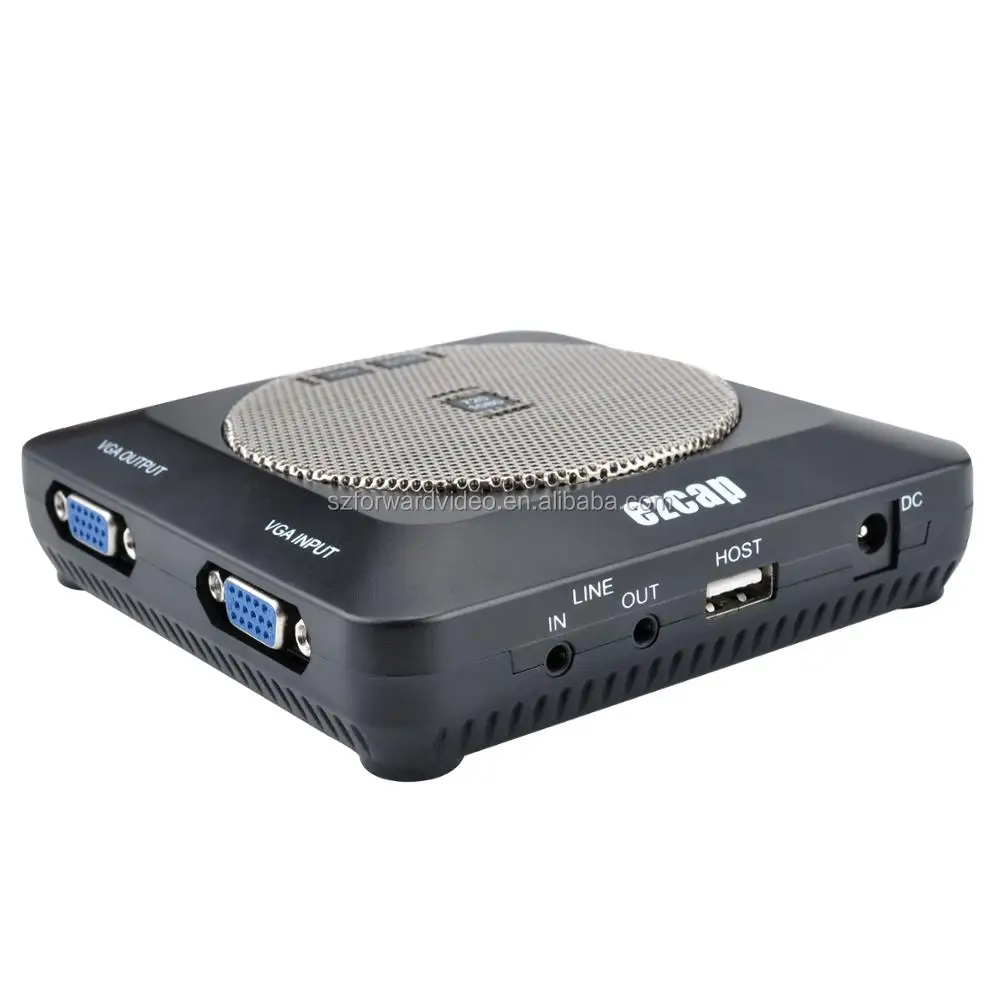

Connections
InterfaceUSB 2.0 Host

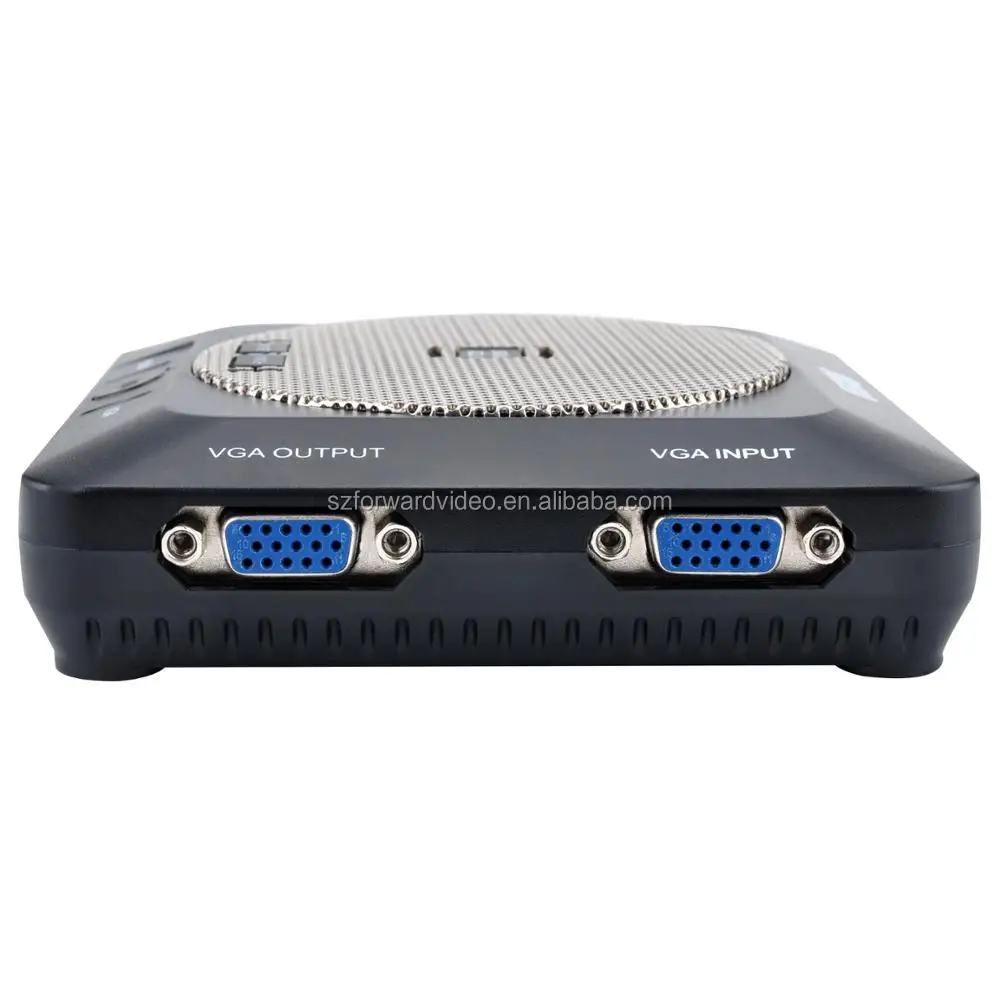

Video InputHDMI, VGA
Audio InputHDMI, 3.5mm Line In
Video OutputDigital: HDMI (Pass through from HDMI and VGA), VGA (Pass through from VGA)
Audio OutputDigital: HDMI (Pass through from HDMI and VGA), 3.5mm Line Out
Hardware Extra
CodecHardware H.264 encoder

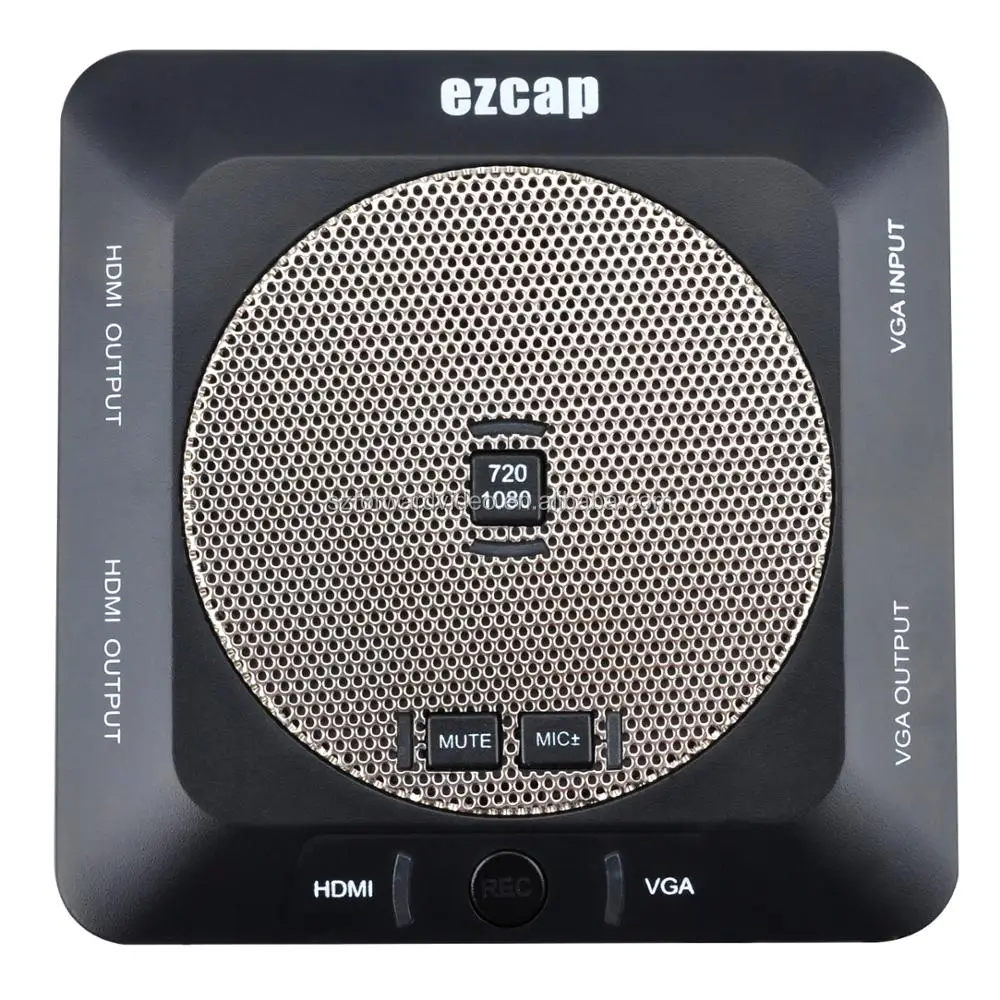

User InterfaceRecord button, 720p/1080p switch button, microphone gain set button, microphone mute button
LED indicator for working status.
Power on/off button
Dimensions115(L)*115(W)*28.3(H) MM
Weight185g
Package Contents
Deviceezcap289 Lecture Capture

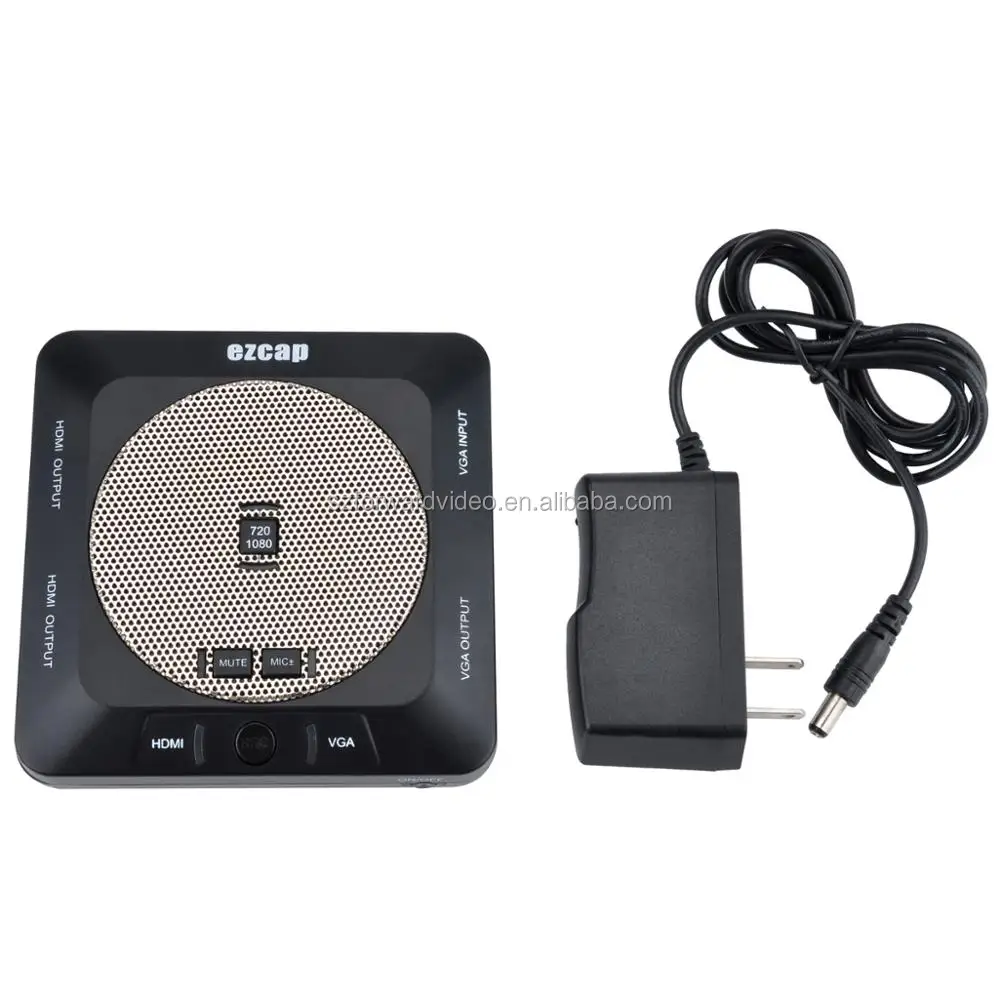

Others5V DC adaptor, Software CD, Manual
Standards
Storage MediaUSB Drive Stick, Portable Hard Disk
Max Capacity: 2T
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour
Power SupplyDC 5V / 2A
Applications
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above
