Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap263
  • Place of Origin: Guangdong, China (Mainland)
  • Interface Type: usb3.0
  • Video Input: HDMI Component Composite
  • Audio Input: HDMI
  • Video Output: USB3.0/HDMI
  • Audio Output: USB3.0
  • video output: 1080P 60fps

Packaging & Delivery

Packaging Details gift box
20pcs/CTN
G.W.:12KG
Delivery Time Shipped in 5 days after payment

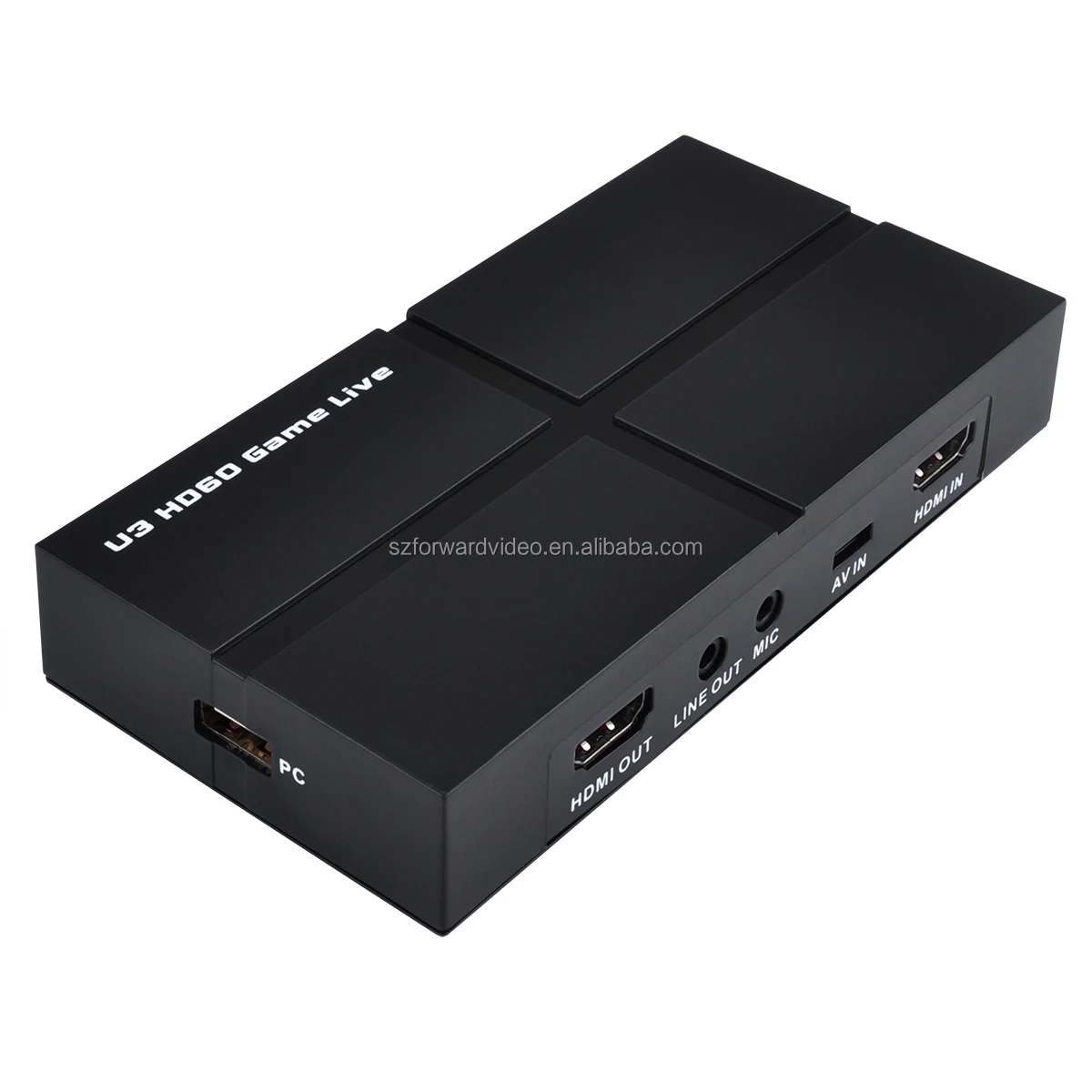

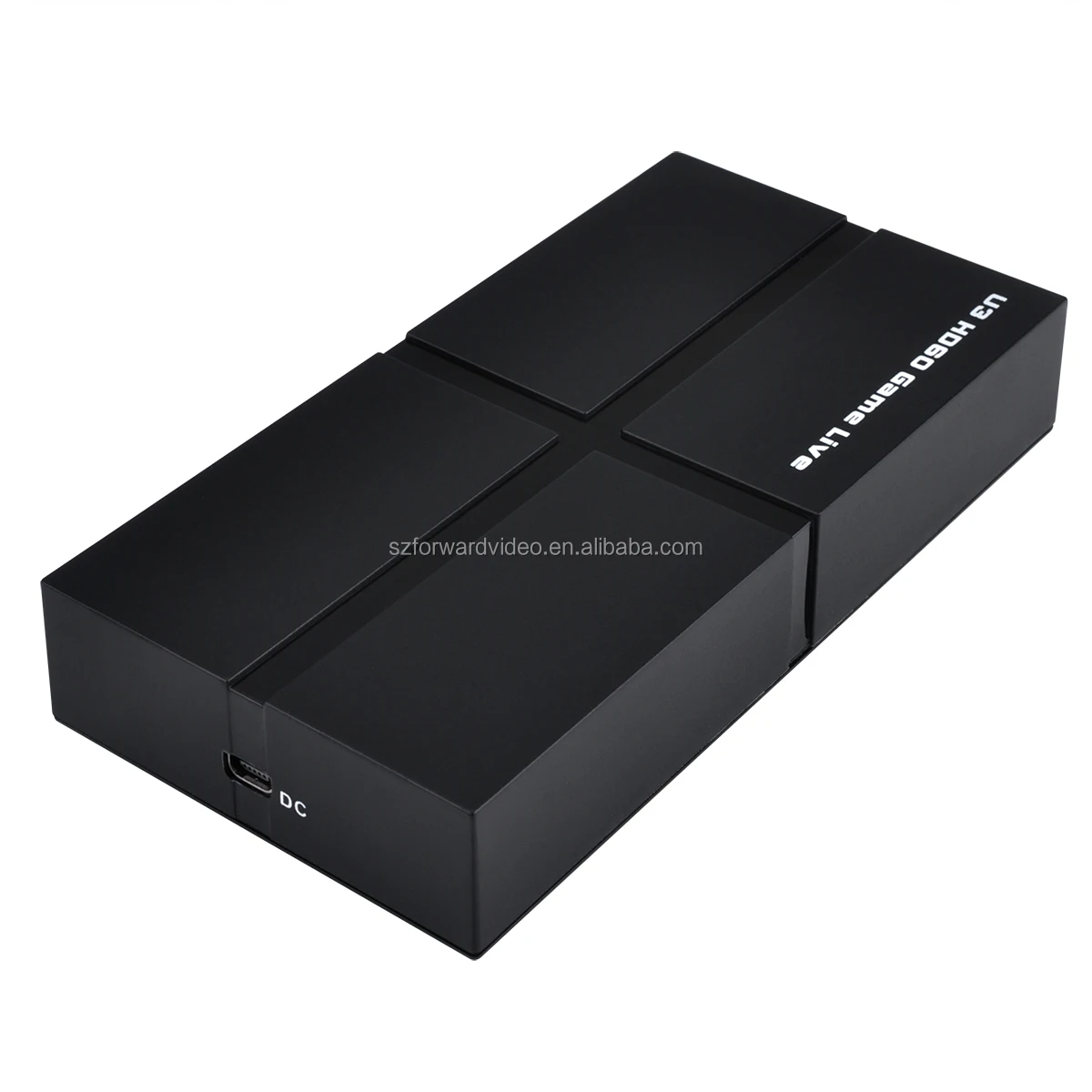

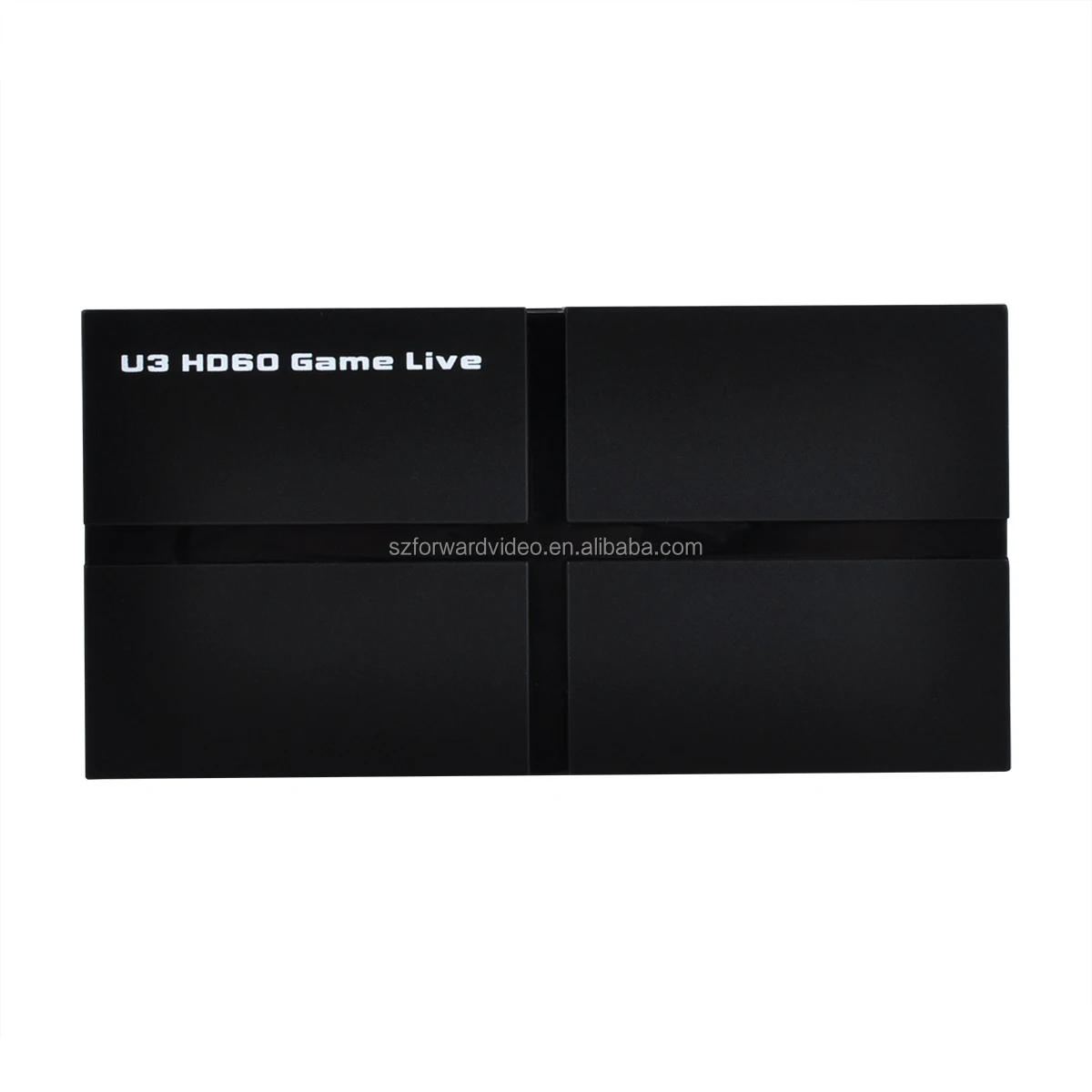

HDMI Component and Composite video to USB 3.0 UVC Capture Card Dongle compatible with Win Mac ezcap263

General function:

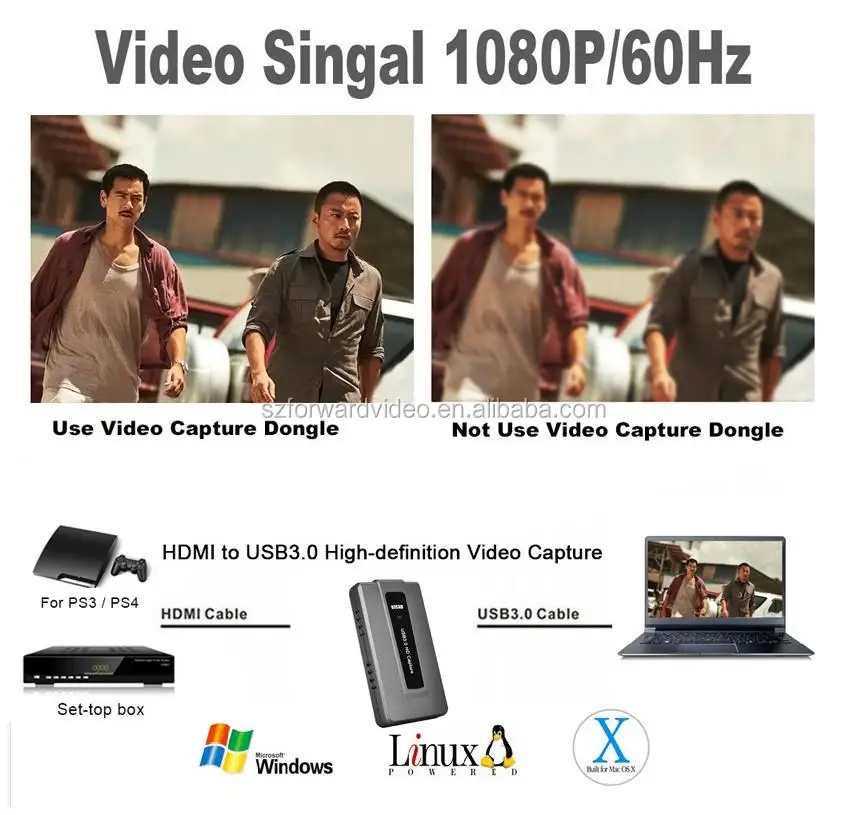

-With USB 3.0 fastest data transfer speed, it's simple and powerful to get HDMI video and audio into your computer, up to 1080@60fps. Support UVC standard, no driver installation required, and work with most software on Windows or Mac. Allow live video streaming, webcasting or video conferencing to Skype, Facebook live, YouTube live, Livestream,Ustream, Dacast, Wowza Cloud …
-With both of HDMI, Component and Composite video input, can support more video player devices. With MicroPhone input, can record or steaming your voice with video together. With Line Out, can connect your earphone when your computer's HDMI has been used for streaming and you have no live sound.
-With HDMI pass-through, can connect with big displayer to play game once you streaming.
-HDMI pass through supports to connect with displayer





Specifications
InterfaceUSB 3.0 UVC
Video InputHDMI, Component Video(YPbPr), Composite Video(CVBS)
Audio InputHDMI, RCA AUDIO L/R, MicroPhone
Video OutputHDMI
Audio OutputHDMI, 3.5mm Line Out
Applicable ConnectionWiiU, Xbox 360, Xbox One, PS4, HDMI Camera, Medical device …
ApplicationGame streaming, Video Conferencing, Movie Making, Lecture Capture, Telemedicine, Live Streaming …
ResolutionInput:                                                                                                                 640 x 360, 640 x 480, 720 x 480, 720 x 480, 720 x 576 , 768 x 576, 800 x 600, 856 x 480, 960 x 540, 1024 x 576, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1368 x 768, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200; Frame rate: 25/29.97/30/50/59.94/60 fps
Output:  1920 x 1080P@60fps
Capture:                                                                                                                 640 x 360, 640 x 480, 720 x 480, 720 x 480, 720 x 576 , 768 x 576, 800 x 600, 856 x 480, 960 x 540, 1024 x 576, 1024 x 768, 1280 x 720, 1280 x 800, 1280 x 960, 1280 x 1024, 1368 x 768, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200; Frame rate: 25/29.97/30/50/59.94/60 fps
Operating SystemWindows 7/8/10/Server 2008, Linux Kernel version 2.6.38 and above, OS X 10.8 and above, Android.
Software CompatibilityAdobe Flash  Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Windows Media Encoder (Windows), Daum Potplayer (Windows, OS X), Xsplit Broadcaster (Windows, OS X), VLC (Windows, OS X, Linux), Wirecast (Windows, OS X), OBS, ...
CodecHardware video encoder
User InterfaceOne LED indicator for working status
Package Contentsezcap263 U3 HD60 Game Live, Mini USB Power Supply, AV Cable Adapter,  USB 3.0 cable, Manual
Dimensions142(L) × 73(W) × 26(H) mm
Weight105g
