Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap295
  • Place of Origin: Guangdong, China (Mainland)
  • Interface: USB 2.0 Host
  • Video Input: HDMI,Component Video, Composite Video
  • Audio Input: HDMI,RCA L/R, 3.5mm MicroPhone In
  • Video Output: HDMI
  • Audio Output: HDMI,3.5mm Stereo Line Out
  • Applicable Connection: WiiU Xbox 360 One PS4 PS3 HD Camera Set-Top Box Medical device
  • Codec: Hardware H.264 encoder
  • Storage Media: USB Flash Drive, USB Portable Hard Disk,Max Capacity: 2T
  • Record Format: Video: MP4, Audio: AAC Stereo
  • Record Quality: Max: 16Mbps@1080P 30fps. Can choice recording bitrate: 4M/10M/16M

Packaging & Delivery

Packaging Details 20pcs/carton
G.W:11KG
Carton Size:L42.5*24*32.5cm
Delivery Time 1 Day for Sample,15-25days for 1000pcs

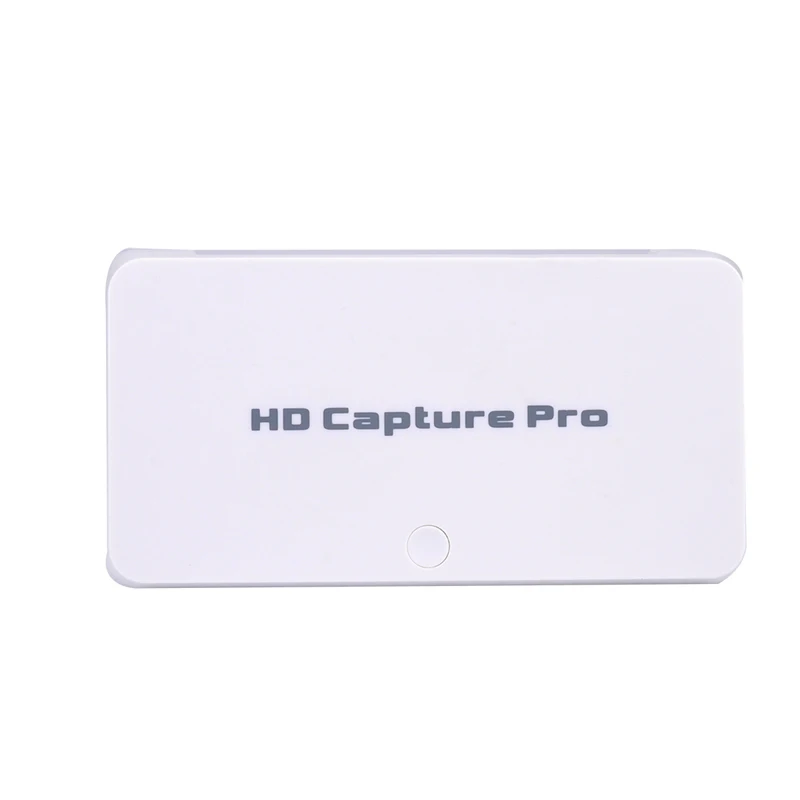

HD Video Capture Pro



With this ezcap295 HD Video Capture Pro, you can capture up to 1080P video from HDMI ,Ypbpr (component) or composite port, such as blue ray, set-top-box, computer, game box, VHS, etc. And you can playback the record movie directly.



Ezcap295 has record and playback two function in one device, use remote controller to set to playback mode. You can also set schedule recording, set recording quality, set split recording file or not.


Features/ports and buttons:





1.PC/DCDC 5V power supply,or connect to PC.



2. HDMI INHDMI input.



3. AV / YPBPRYpbpr component or composite input through adapter cable



4. MIC INFor connect a microphone and record voice comments when play game.



5. LINE OUTAudio output.



6. HDMI OUTHDMI output, so can connect to monitor to pass through display the input video.



7. HOSTPlug a USB flash (or USB HDD) to save record video.



8. Record button  Press button to record/stop record.

Remote controller:



Record:  Directly Save 1080P HD Video into USB Sticker or HDD.

1)Schedule record:

2)Set the recording video quality & split:



Press MENU of remote controller, enter to following menu, clock to set the time of system, REC is schedule (same function as above), REC Video Quality you can set to High, Middle, Low, to set the recording video bit rate to 16, 10, 4Mps

The RECORD_FILE you can set to SPLIT or NO_SPLIT(NTFS), to SPLIT means will cut the record file to 2GB each both in FAT and NTFS storage.  NO_SPLIT(NTFS) means will cut the record file to 2GV each in FAT storage, but will save in one whole file in NTFS storage.



3)Personal recording settings: Snapshot, recording bitrate, watermark, Mute/volume adjust, MicroPhone Mute/adjust, Aspect Ratio...



4)With Playback function, allow you playback the recorded video directly, and delete the files you want. Works with OBS on your computer for live video streaming.





Specifications:

Connections

Interface

USB 2.0 Host

Video Input

Digital: HDMI

Analog: Component Video, Composite Video

Audio Input

Digital: HDMI

Analog: 3.5mm Microphone In. Analog L/R in

Video Output

Digital: HDMI (Pass-through from HDMI or Component or Composite Input)

Audio Output

Digital: HDMI (Pass-through from HDMI or RCA L/R Input)

Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)





Applicable Connections with Game Consoles

HDMI

Industry HD camera, HD Medical endoscope, TV, gameplay, etc

Component

TV, gameplay, etc

Composite

Industry camera, Medical endoscope, TV, gameplay, etc























Hardware Extra

Codec

 Hardware H.264 encoder

User Interface

Record button, mode switch button.

LED indicator for working status.

infrared receiver

Dimensions

142(L) × 73(W) × 26(H) mm.

Weight

110g













Package Contents

Device

ezcap295 HD Video Capture Pro

Others

DC adaptor, remote controller, AV cable, Manual













Standards

Storage Media

USB Flash Disk, Portable Hard Disk

Max Capacity: USB / 2T

Note: The exFAT format is not supported.

Resolution

Input / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

Capture:                                                                                                               1280 x 720p(60p), 1366*768 (60p), 1920 x 1080 (30p)

Record Format

Video: MP4, Audio: AAC Stereo

Record Quality

Max: 16Mbps@1080P 30fps

Record File

Max: 2GB / Per File, With RTC (Real Time Clock)

Record Place

Max: 140MB / Minute, 8.4GB / Hour

Power Supply

USB DC 5V / 2A
