Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap263
  • Place of Origin: Guangdong, China (Mainland)
  • Interface: USB 3.0 UVC
  • Video Input: HDMI, Component Video(YPbPr), Composite Video(CVBS)
  • Audio Input: HDMI, RCA AUDIO L/R, MicroPhone
  • Video Output: HDMI
  • Audio Output: HDMI, 3.5mm Line Out
  • Applicable Connection: WiiU, Xbox 360, Xbox One, PS4, HDMI Camera, Medical device
  • Application: Game streaming, Video Conferencing, Movie Making, Lecture Capture...
  • Resolution: 1920 x 1080P@60fps
  • Operating System: Windows , Linux , OS , Android.

Packaging & Delivery

Packaging Details Gift box first
20pcs/Carton
G.W.:12KG
Delivery Time 1-5days

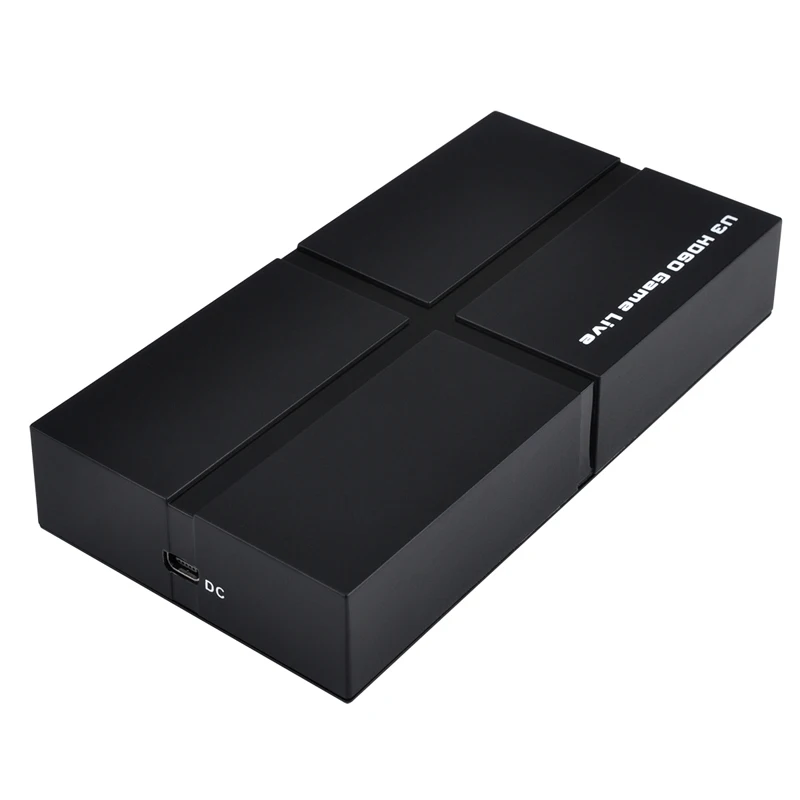

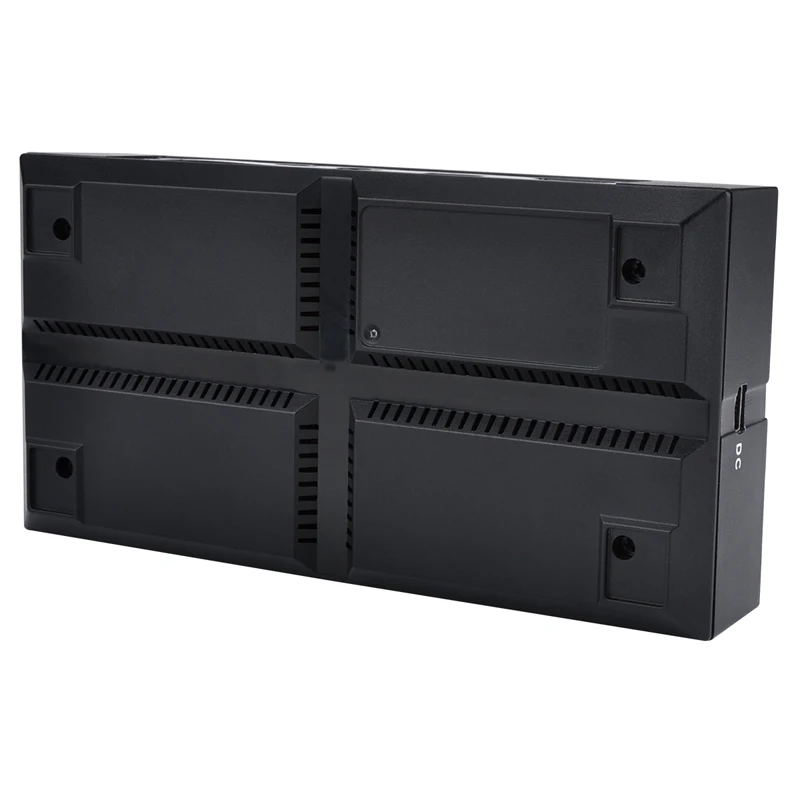

ezcap263 U3 HD60 Game Live 1080P HDMI YPBPR AV All to USB3.0 Video Capture Box Video to PC or Live Streaming with Microphone

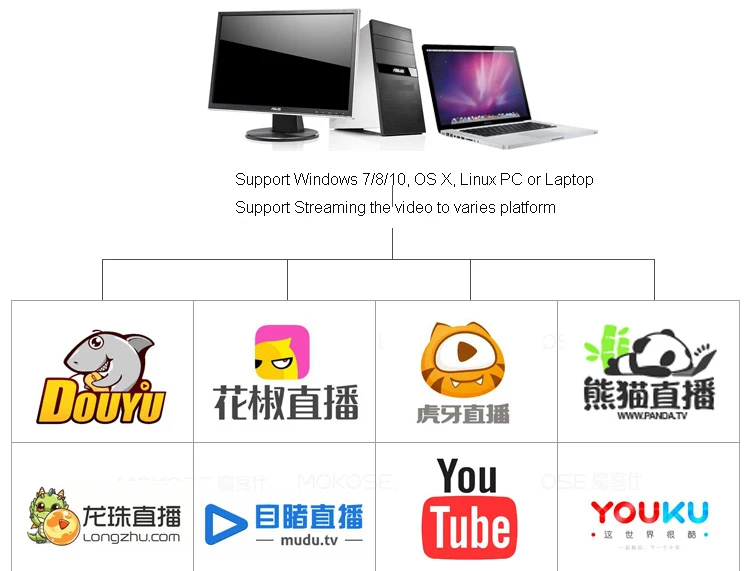

With USB 3.0 fastest data transfer speed, it's simple and powerful to get HDMI video and audio into your computer, up to 1080@60fps. Support UVC standard, no driver installation required, and work with most software on Windows or Mac. Allow live video streaming, webcasting or video conferencing to Skype, Facebook live, YouTube live, Livestream,Ustream, Dacast, Wowza Cloud …



With both of HDMI, Component and Composite video input, can support more video player devices. With MicroPhone input, can record or steaming your voice with video together. With Line Out, can connect your earphone when your computer's HDMI has been used for streaming and you have no live sound.



With HDMI pass-through, can connect with big displayer to play game once you streaming.



Specifications
InterfaceUSB 3.0 UVC
Video InputHDMI, Component Video(YPbPr), Composite Video(CVBS)
Audio InputHDMI, RCA AUDIO L/R, MicroPhone
Video OutputHDMI
Audio OutputHDMI, 3.5mm Line Out
Applicable ConnectionWiiU, Xbox 360, Xbox One, PS4, HDMI Camera, Medical device …
Application

Game streaming, Video Conferencing, Movie Making, Lecture Capture,

Telemedicine, Live Streaming …

Resolution

Input:

640 x 360, 640 x 480, 720 x 480, 720 x 480,

720 x 576 , 768 x 576, 800 x 600, 856 x 480,

960 x 540, 1024 x 576, 1024 x 768, 1280 x 720,

1280 x 800, 1280 x 960, 1280 x 1024, 1368 x 768,

1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080,

1920 x 1200; Frame rate: 25/29.97/30/50/59.94/60 fps

Output:  1920 x 1080P@60fps

Capture: 640 x 360, 640 x 480, 720 x 480, 720 x 480,

720 x 576 , 768 x 576, 800 x 600, 856 x 480, 960 x 540,

 1024 x 576, 1024 x 768, 1280 x 720, 1280 x 800,

1280 x 960, 1280 x 1024, 1368 x 768, 1440 x 900,

1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200;

Frame rate: 25/29.97/30/50/59.94/60 fps

Operating System

Windows 7/8/10/Server 2008, Linux Kernel version 2.6.38 and above,

OS X 10.8 and above, Android.

Software Compatibility

Adobe Flash  Media Live Encoder (Windows, OS X),

Real Producer Plus (Windows), QuickTime Broadcaster (OS X),

QuickTime Player (OS X), Windows Media Encoder (Windows),

Daum Potplayer (Windows, OS X), Xsplit Broadcaster (Windows, OS X),

VLC (Windows, OS X, Linux), Wirecast (Windows, OS X), OBS, ...

CodecHardware video encoder
User InterfaceOne LED indicator for working status
Package Contents

ezcap263 U3 HD60 Game Live, Mini USB Power Supply,

AV Cable Adapter,  USB 3.0 cable, Manual

Dimensions142(L) × 73(W) × 26(H) mm
Weight105g
