Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: ezcap
  • Model Number: ezcap289
  • Interface: USB 2.0 Host
  • Video Input: HDMI, VGA
  • Audio Input: HDMI, 3.5mm Line In
  • Video Output: HDMI (Pass through from HDMI and VGA), VGA (Pass through from VGA)
  • Audio Output: HDMI (Pass-thr from HDMI), Line out(Pass-thr from LINE IN only)

Packaging & Delivery

Packaging Details 10pcs/Carton
G.W.:10KG
Delivery Time 1 day for sample, 15-25 days for 1K.

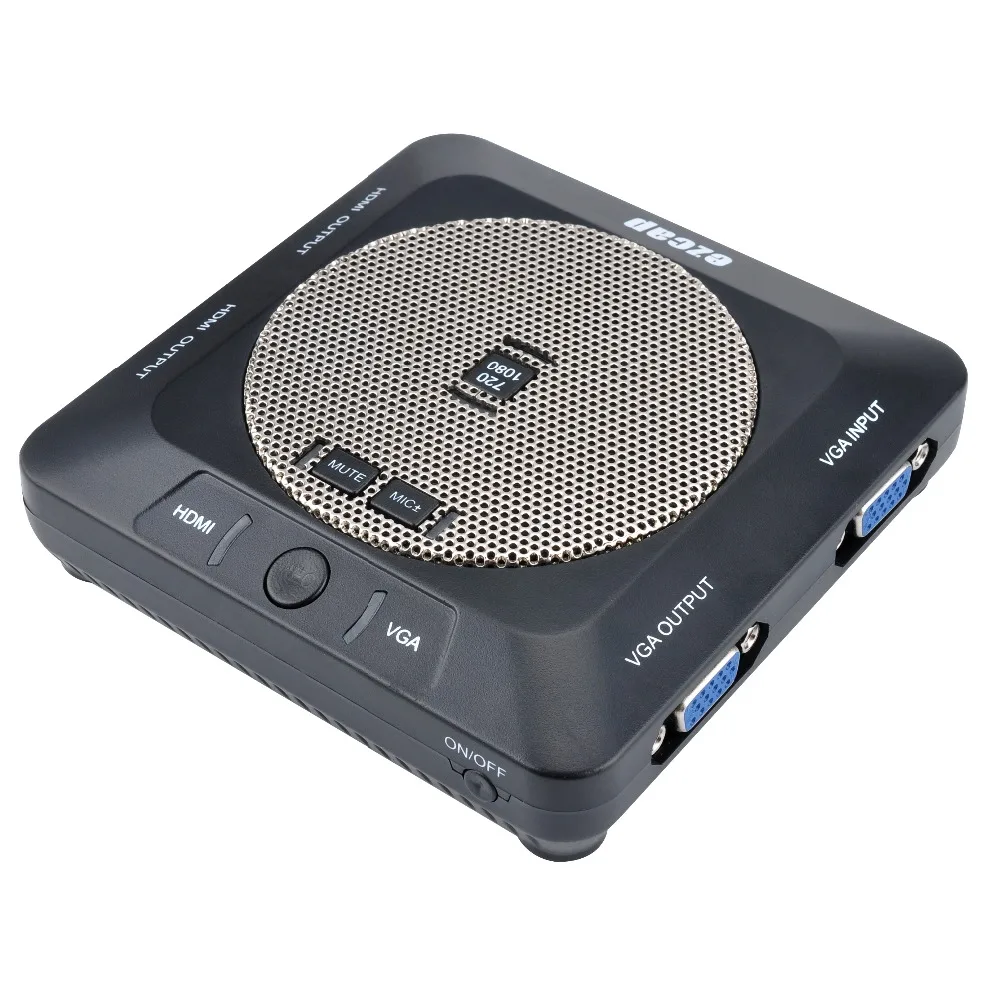

ezcap289 Stand alone VGA HDMI 1080p 30fps Video Lecture Capture Meeting Capture Extreme Cap to  USB with Built in Microphone


Main function:

- With built-in 360 degree microphone-records only the speaker’s voice and filters out background noise / H.264 hardware encoder;

- Create recorded content to promote events, save in the cost of hiring lecturers, or recap meetings with colleagues;

- One click recording / PC-Free Mode – record straight to USB flash drive or USB HDD;

- Perfect for archiving Corporate Training sessions, Public Speaking events, Educational seminars, and more;

- VGA & HDMI 1080p 30fps Capture & Pass-thru functionality – connect to projectors, PC laptops, and tablets and record slideshows;

- Record entire lesson with voice for sharing by pressing one button.

- With one-touch mute control.





With ezcap289 Lecture Capture, just press one button to record digital lesson contents or meeting presentations. with integrated microphone, recording HD lecture combined with voice. It is plug & Play, standalone working no need PC.

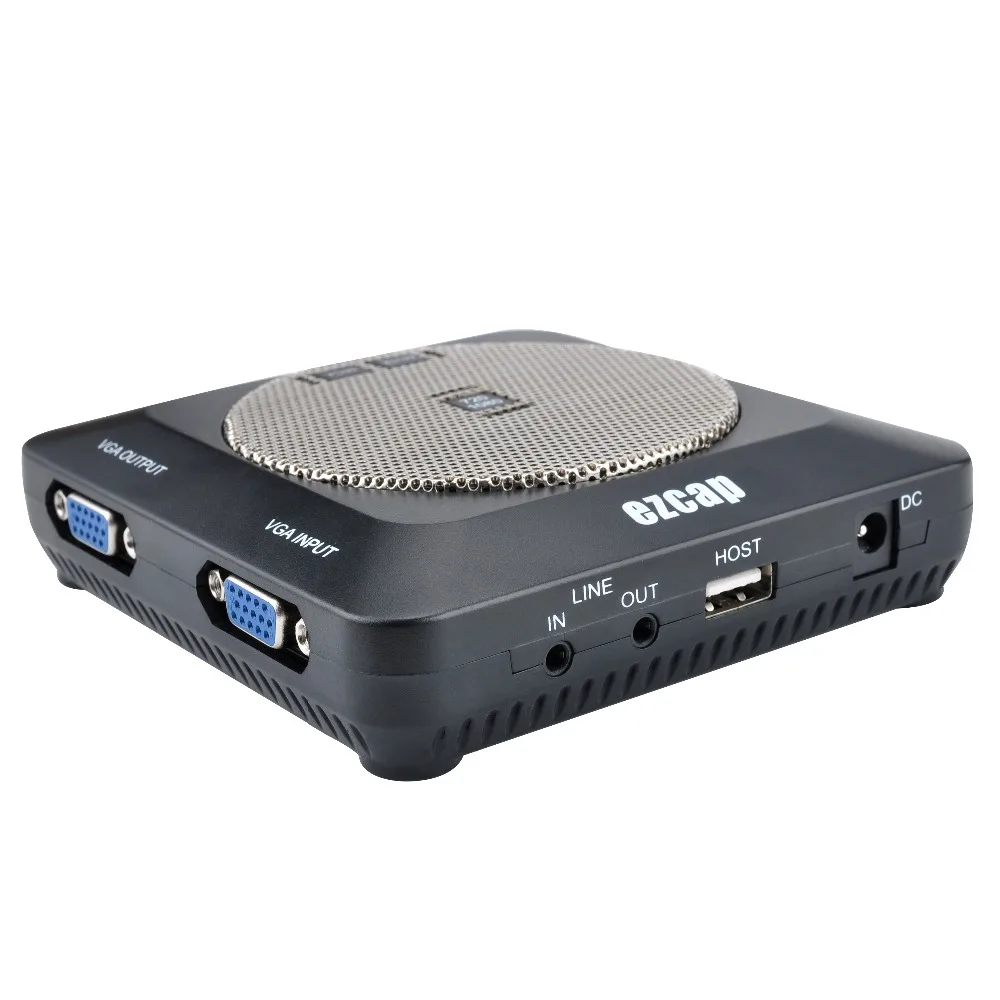

Features/ports and buttons:







1. DC—DC 5V power supply.



2. HOST—For plugging USB flash drive or USB HDD to save recorded files.



3. LINE IN—Connect line audio so mixed with video.



4. LINE OUT—By pass from line in (not output from HDMI)

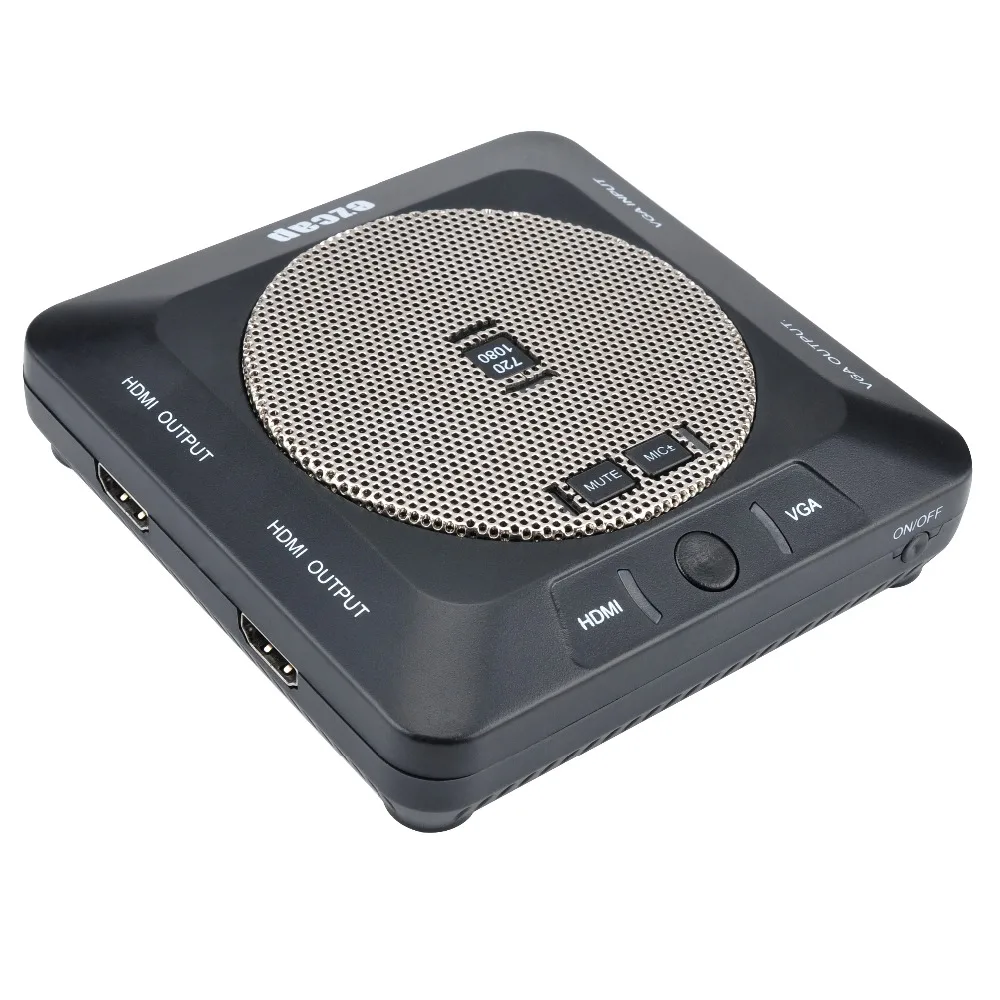

5. HDMI OUTPUT—Pass through from HDMI input or VGA input.



6. HDMI INPUT

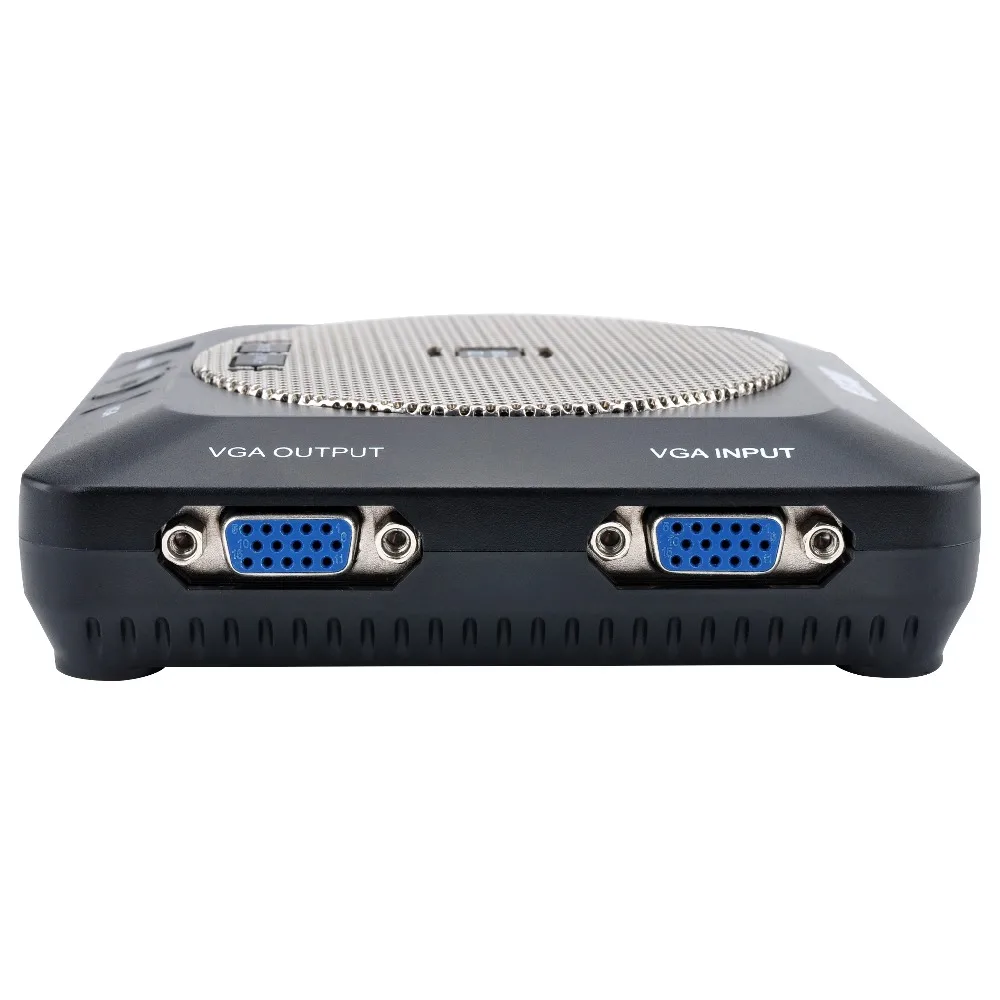

7. VGA INPUT



8. VGA OUTPUT—Loop through display video from VGA input only.

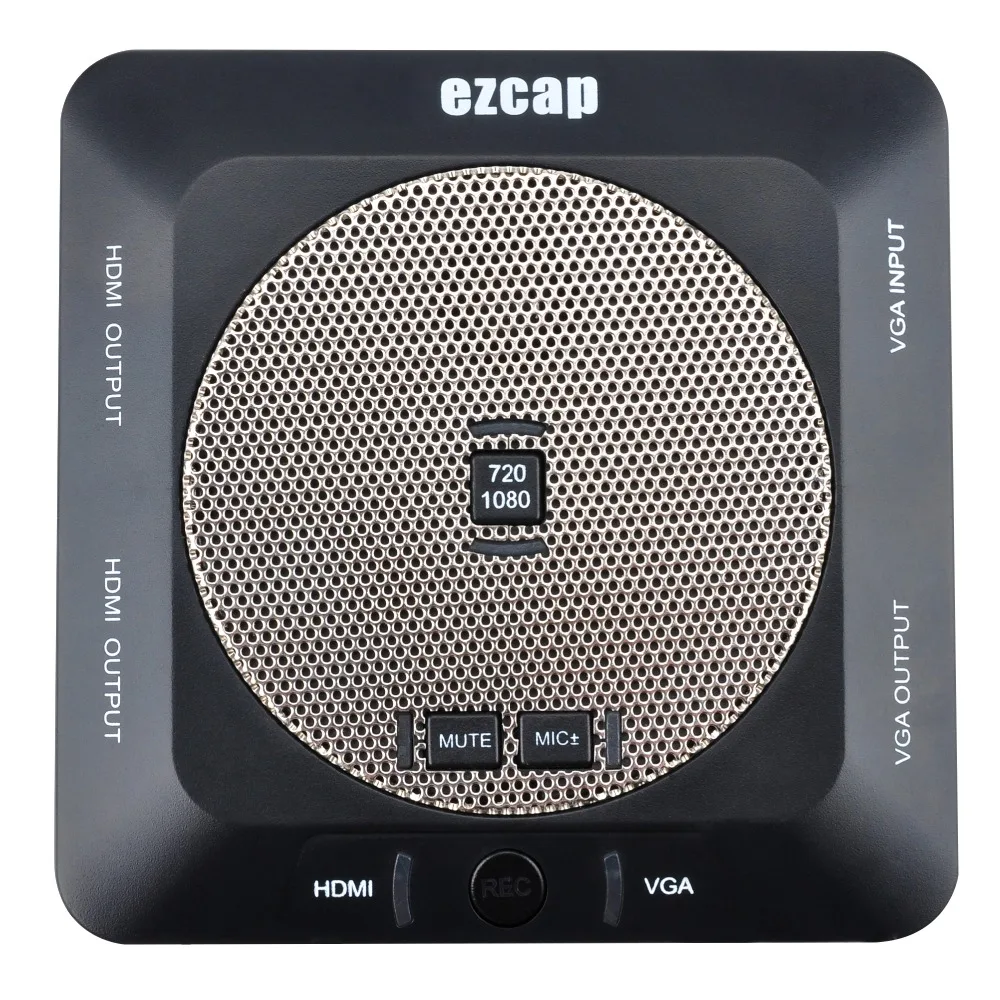

9. MUTE — Button for microphone on or mute.See below “Mute key, and microphone volume”



10. MIC+-— Button for switching microphone gain. See below “Mute key, and microphone value”.



11. REC—Press to start recording, red REC LED will turn on, press again to stop recording, LED will flash few seconds, then turns off. HDMI LED on means record from HDMI input, VGA LED on means record from VGA input. If no video input, both HDMI and VGA LEDs will turn off, but still can record voice with black screen.



12. 720/1080—When input video is 1920*1080, press this button to set the resolution of record video between 720 and 1080, 720 LED on means record 720, 1080 LED on means record 1080. Before you press this button to set recording video quality, 1080 green LED keeps on when input 1080 resolution video or no video source input, and 720 green LED keeps on when input 720 or less than 720 resolution video.



13. ON/OFF—Short press to power on, and MUTE green LED will turn on. Long press 3 seconds again to power off, green LED will turn off. It’s no effect during recording.



Specifications:

Connections

Interface

USB 2.0 Host

Video Input

HDMI,VGA

Audio Input

HDMI,LINE IN, Microphone inside

Video Output

HDMI (Pass-through from HDMI, VGA), VGA (loop from VGA)

Audio Output

HDMI (Pass-through from HDMI), Line out(Pass-through from LINE IN only)

Package Contents



Device

ezcap289 Lecture Capture

Others

5V/2A DC adapter, Software CD, User Manual

Hardware Extra

Codec

Hardware H.264 encoder

User Interface

Record button, 720p/1080p button, gain set button, mute button, ON/OFF button

LED indicator for working status

Dimensions

115*115*28.3 MM

Net Weight

185g

Standards

Storage Media

USB Flash Drive, USB HDD

Note: The exFAT format is not supported.

Resolution

Input / Pass-through:

720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

Capture:

720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)

Note: Up scaling is not supported.

Record Format

Video: MPEG4, Audio: AAC

Record Quality

Max: 18Mbps@1080P 30fps

Record File

Max: 1.95GB / Per File

Record Place

Max: 140MB / Minute, 8GB / Hour

Power Supply

DC 5V / 2A

Applications

Software

Arcsoft Showbiz

Video Editing

Timeline / Storyboard edit, Split / Divide Scenes, MUTEi Trim Scenes

Video Export

Upload  to YouTube

Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox

File: MPEG 1 / 2 / 4, WMV HD, QuickTime (MOV) …

Operating System

Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)

CPU

Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz

Memory

4 GB RAM

Graphics Card

VGA card with support for DirectX 10.0c or above
