ezcap280PA YPBPR HDMI Video Capture Game Capture with Real microphone recording

FOB Reference Price:Get Latest Price
US $35-45 / Units | 200 Unit/Units HD Video Capture (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ezcap
Model Number:
ezcap280PA
Place of Origin:
Guangdong, China (Mainland)
Interface Type:
USB2.0 Host
Video Input:
Digital: HDMI Analog: Component Video
Audio Input:
Digital: HDMI Analog: RCA L/R 3.5mm microphone
Video Output:
HDMI (Pass-through from Component and HDMI
Audio Output:
Digital: HDMI Analog: 3.5mm Stereo
HDMI:
WiiU Xbox 360 Xbox One PS4 etc Component:: WiiU Xbox 360 PS3 etc
Storage Media:
USB Flash Disk Portable Hard Disk
Model:
ezcap280PA
Supply Ability
Supply Ability:
60000 Unit/Units per Month HD Video Capture
Packaging & Delivery
Packaging Details
Gift box inside, Carton box outside.
20pcs/carton 42.5*24*32.5cm G.W.:10KG
Port
Shenzhen
ezcap280PA YPBPR HDMI Video Capture Game Capture with Real microphone recording

Overview of hdmi video capture card :

The ezcap280PA HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.

ezcap280PA HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better.

 Capture 1080P video through HDMI or YPBPR from game consoler ,STB,DVD or other video source, stand along, no PC required, Simply press the recorder button, save to USB flash drive or USB hard disk.

Features of hdmi video capture card :

*Record 1080P HD Video and save it to USB Stick or HDD directly.
*Support  HDMI,Component,microphone  and line audio input.
*Support  real microphone recording during HDMI video input.
*Support 1080P HDMI Pass through, line audio out.
*Codec : Hardware H.264 encoder, AAC Stereo.
*Record format: MPEG4.

*Record Quality: Max: 18Mbps@1080P 30fps.

-One button record
- Stand along, no PC required
- Interface: USB host for USB Flash disk or USB hard disk
- Recording Format: H.264
- With both HDMI and YPBPR input
   Input: HDMI, or Component Video and Audio L/R, up to 1080P. Extral 3.5mm audio.
- Output: HDMI and USB host.
- With HDMI output pass-through for monitoring
- Power Supply: DC 5V/2A
- Dimension: 110 * 75 * 27 mm
- Weight: 135g

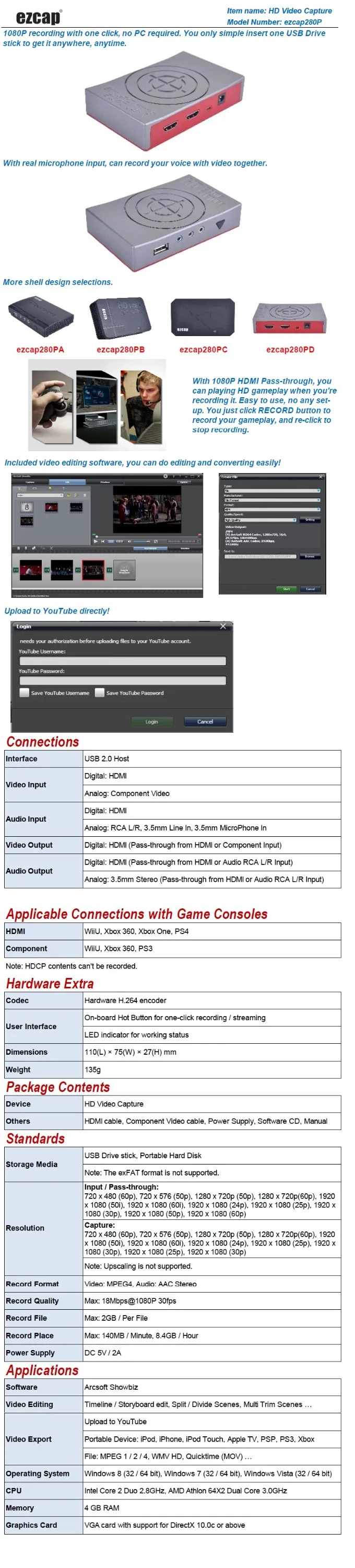

Specifications of hdmi video capture card :


1, Interface: USB 2.0 Host
2, Video Input: Digital: HDMI
                        Analog: Component Video
3, Audio Input: Digital: HDMI
                       Analog: RCA L/R, 3.5mm microphone
4, Video Output: HDMI (Pass-through from Component and HDMI Input)
5, Audio Output: Digital: HDMI (Pass-through from HDMI Input)
                           Analog: 3.5mm Stereo (Pass-through from HDMI and 3.5mm Audio Input)

6, Applicable Connections with Mainstream Game Consoles:
    HDMI: WiiU, Xbox 360, Xbox One, PS4
    Component :WiiU, Xbox 360, PS3

7, Resolution:
    Input/ Pass-through:
    720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
    (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
    1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x
    1080 (60p)

   Capture:
   720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
   (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
   1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x
   1080 (30p)


Package Contents of hdmi video capture card :

- ezcap280PA 1080P HDMI/YPbPr Recorder
- Component video and L/R audio Cable
- Power supply
- Manual
- Video editing software CD(Option)

Specifications of hdmi video capture card :

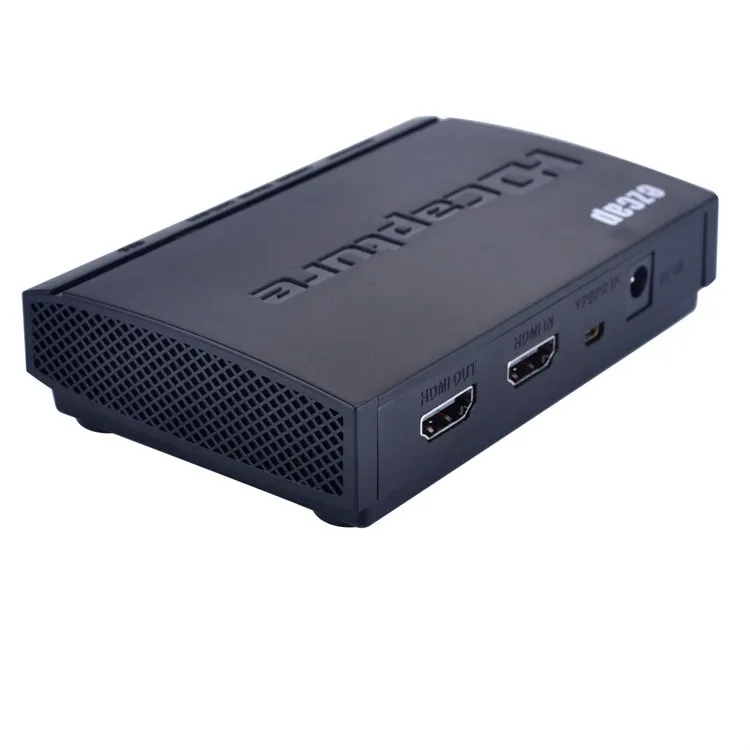

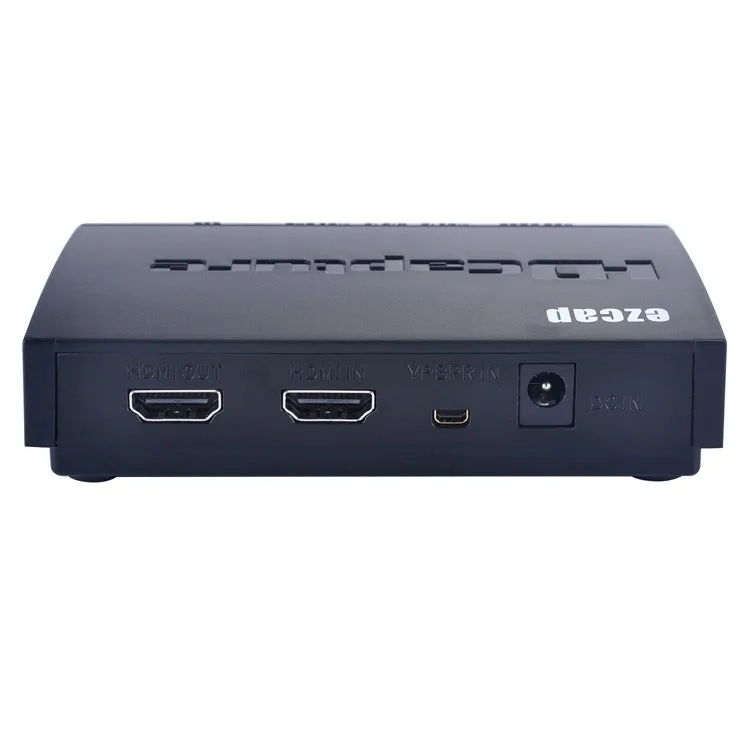

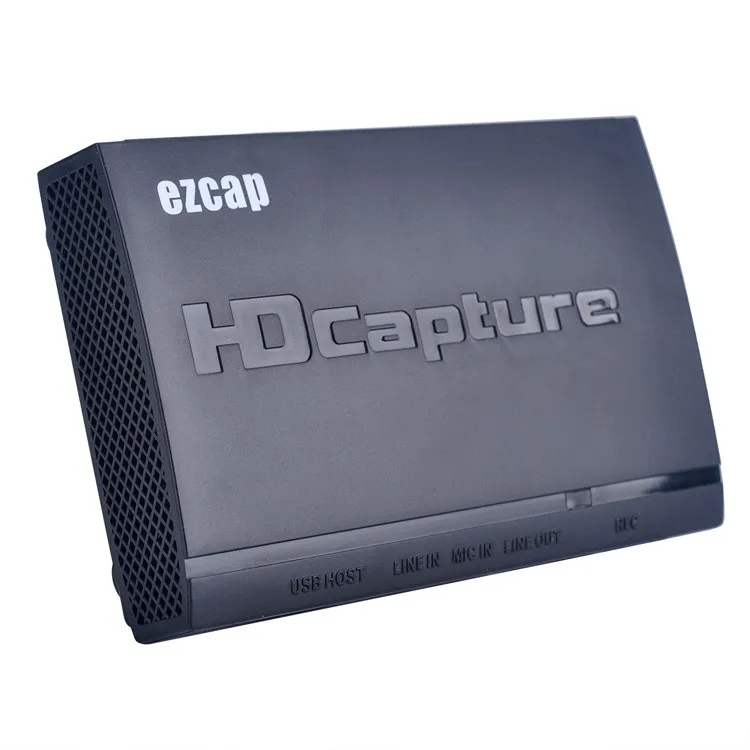

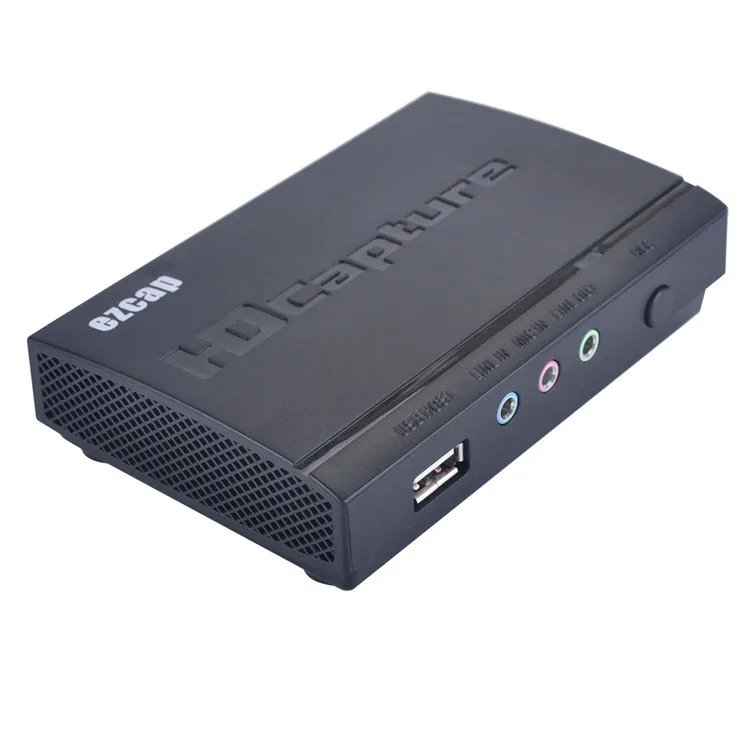

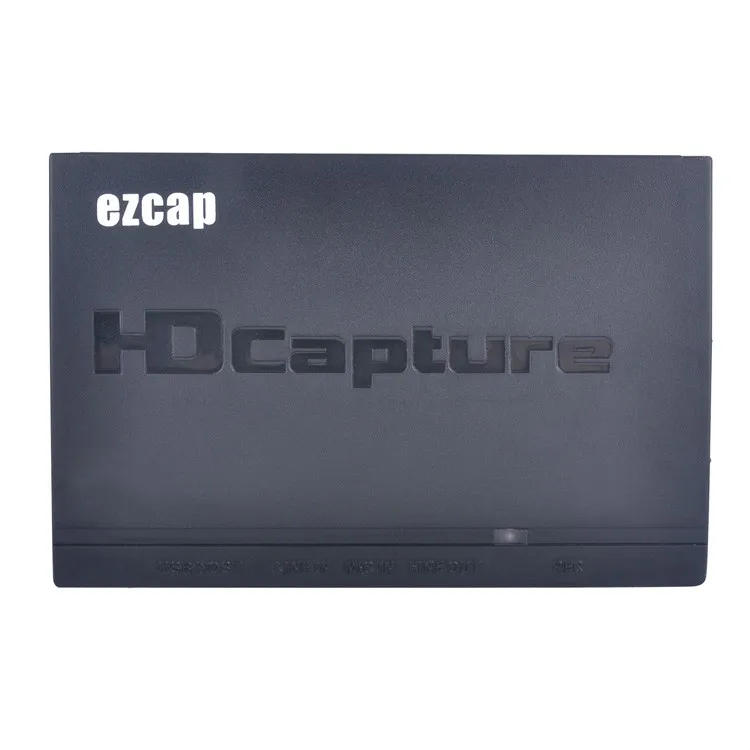

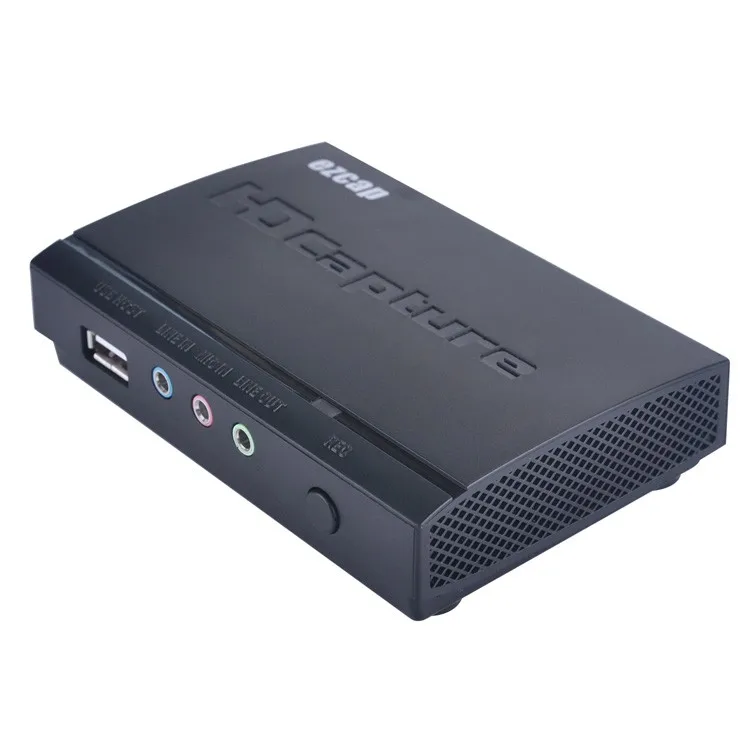

ezcap280PA (1).jpgezcap280PA (2).jpgezcap280PA (3).jpgezcap280PA (4).jpgezcap280PA (5).jpgezcap280PA (6).jpg
1.
2.

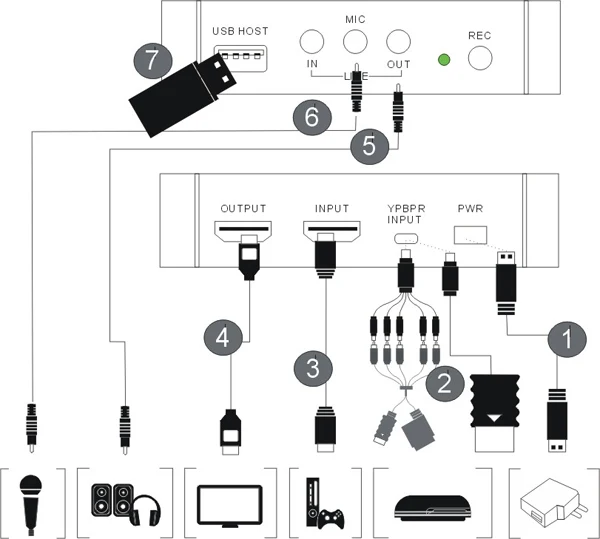

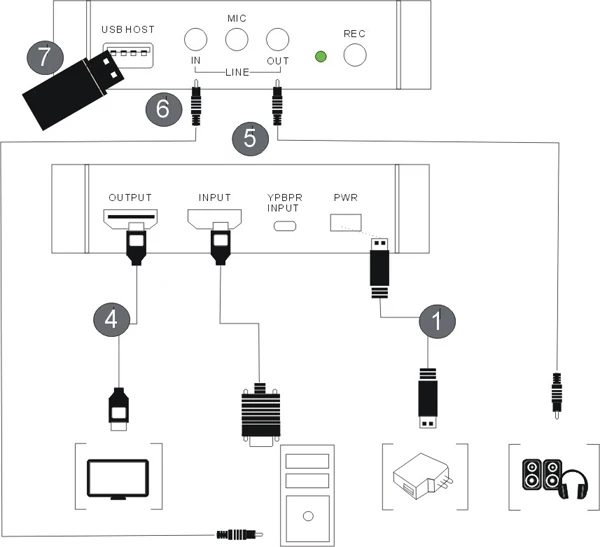

HDMI COMPONENT.jpg

ezcap28X-1
