Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap291
  • Place of Origin: Guangdong, China (Mainland)
  • Interface Type: HDMI
  • Video Input: Digital: HDMI Analog: Component Video
  • Audio Input: Digital: HDMI Analog: RCA L/R 3.5mm microphone
  • Video Output: HDMI (Pass-through from Component and HDMI
  • Audio Output: Digital: HDMI Analog: 3.5mm Stereo
  • HDMI: WiiU Xbox 360 Xbox One PS4 etc Component:: WiiU Xbox 360 PS3 etc
  • Storage Media: USB Flash Disk Portable Hard Disk
  • remote control: yes
  • video output: 720P or 1080P

Packaging & Delivery

Packaging Details: gift box
10pcs/CTN
G.W.:12KG
ForwardVideo hdmi video game TV game console capture with playback  function ezcap291

General function:
-Record 1080P HD video into USB disk directly,no PC enquired.
-Pass through 1080P HDMI to display on big screen.
-Supports all video sources input - HDMI,Component,Composite.
-Record your voice with game video together through microphone input.
-With RTC(Real Time Clock) function.

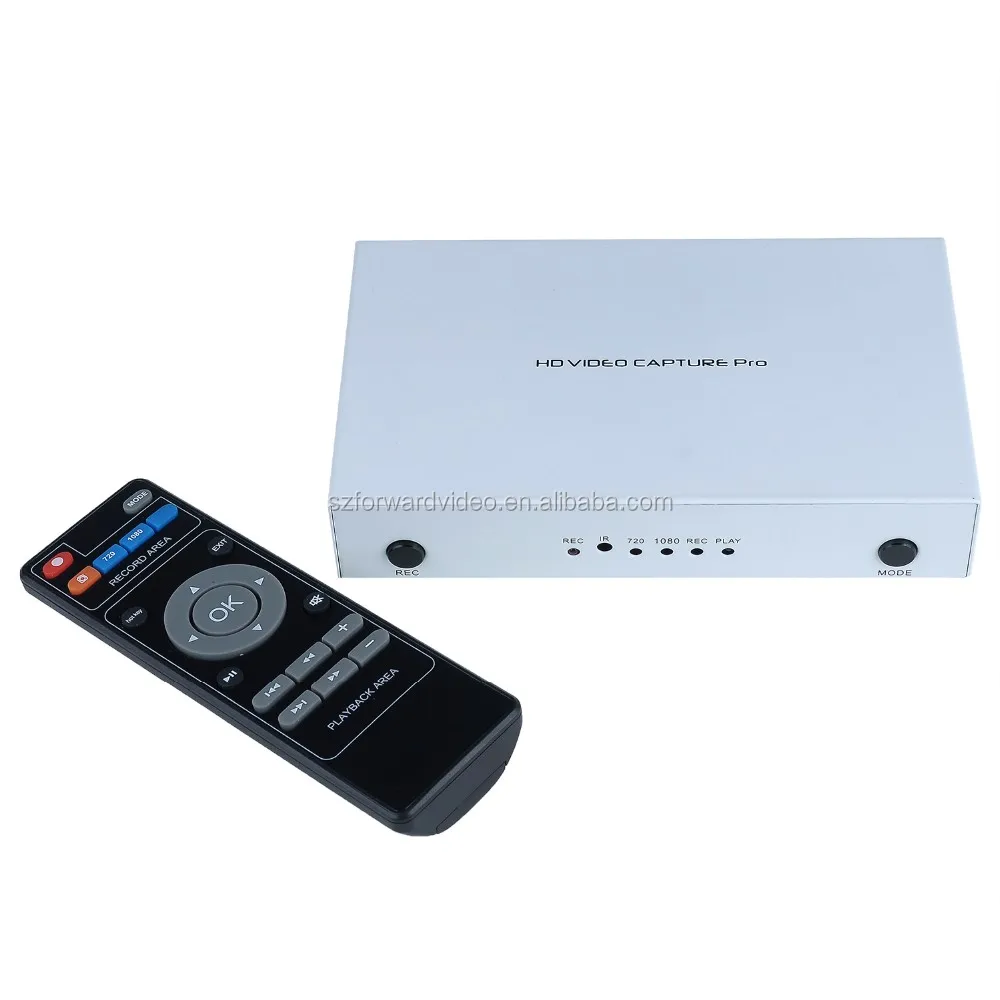

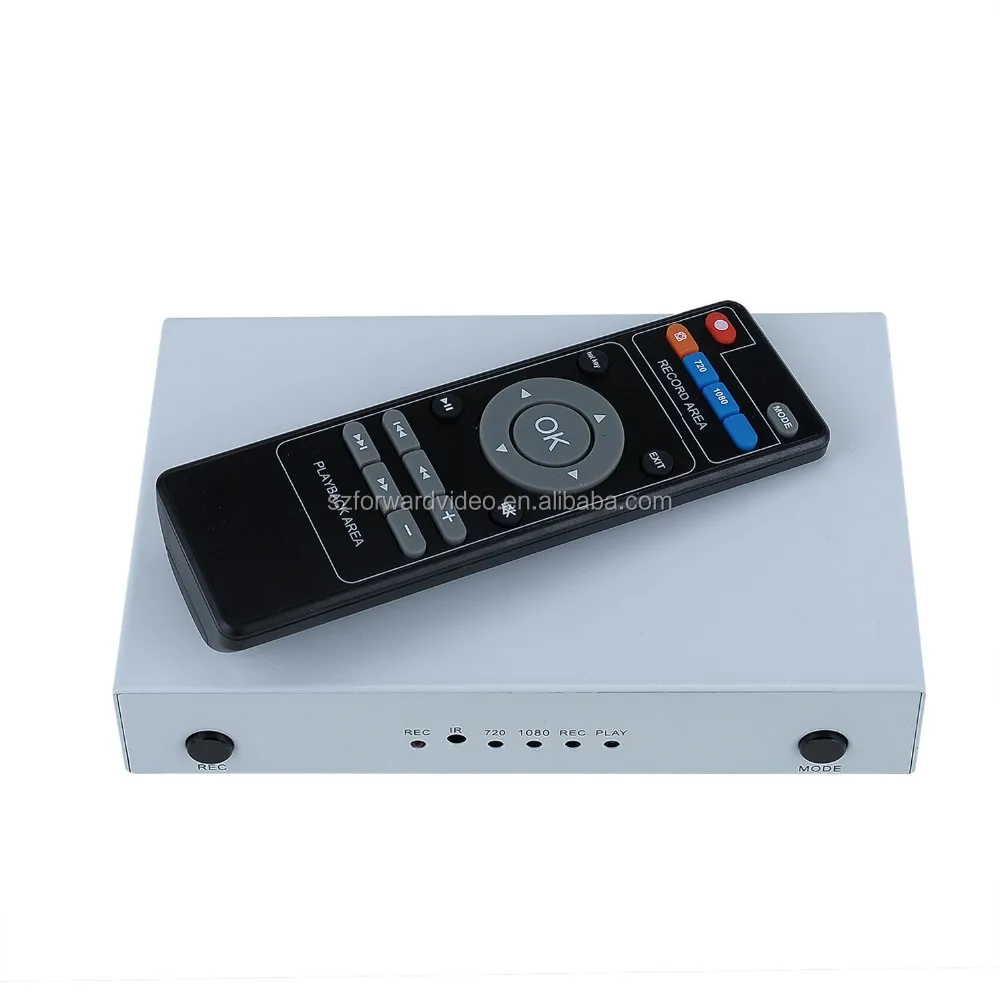

-With Remote Control, can control video source,record quality and snapshot, etc
- With play back directly, you don't have to move the file to computer to check or playback.




Overview:

1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay. More video input choice: HDMI, Component Video, Composite Video. With 1080P HDMI Pass-through, you can playing HD gameplay when you're recording it.

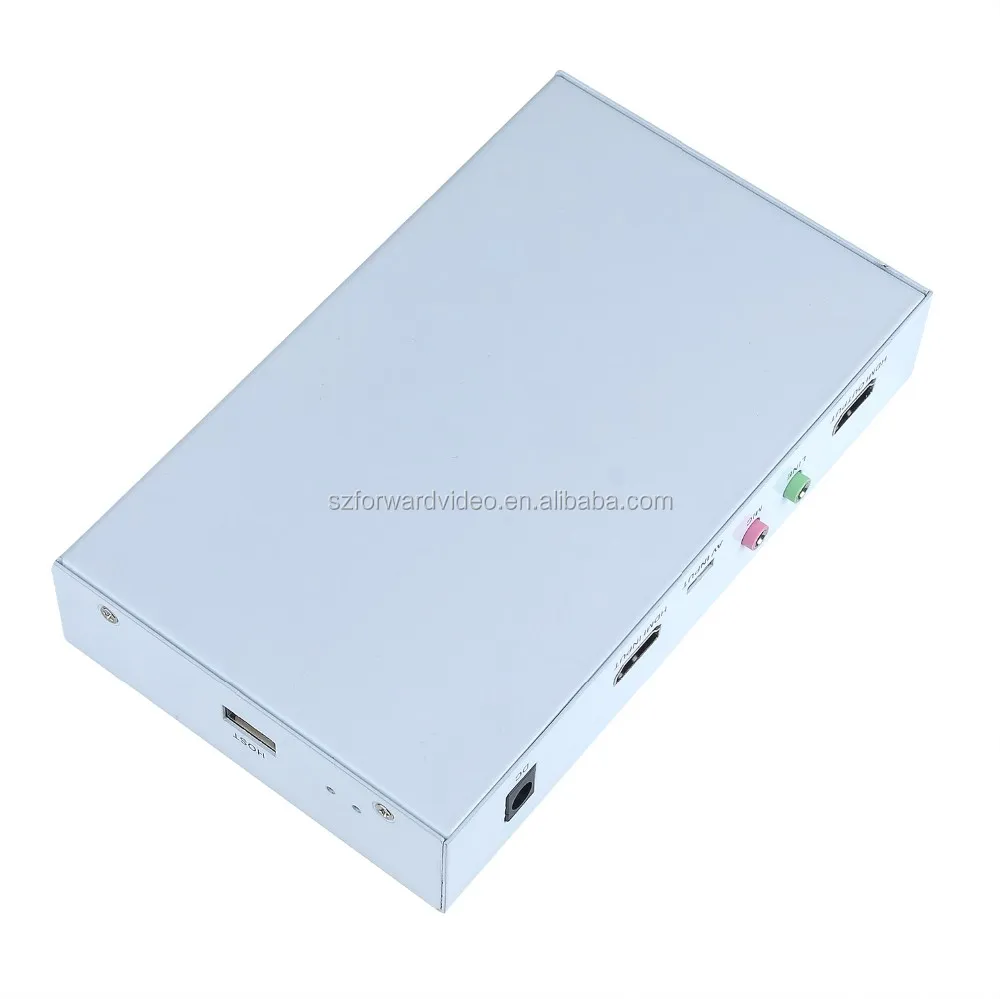

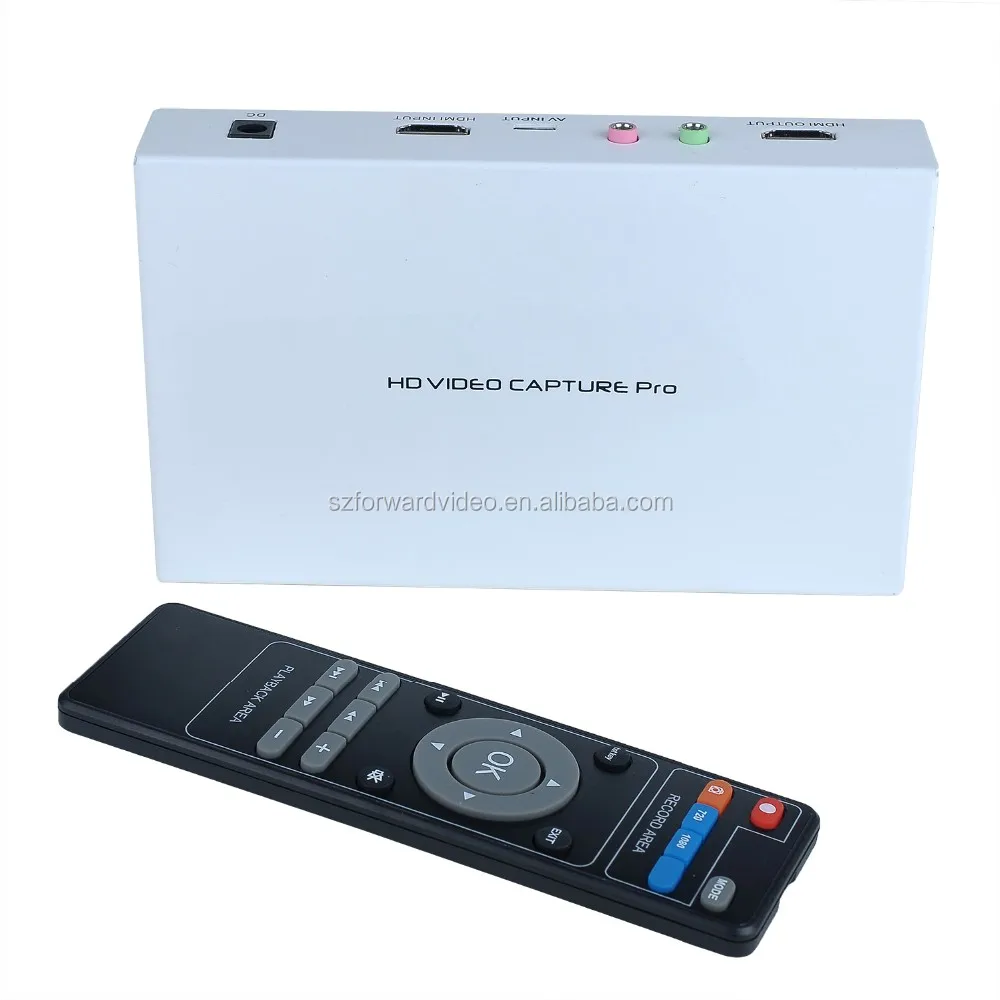

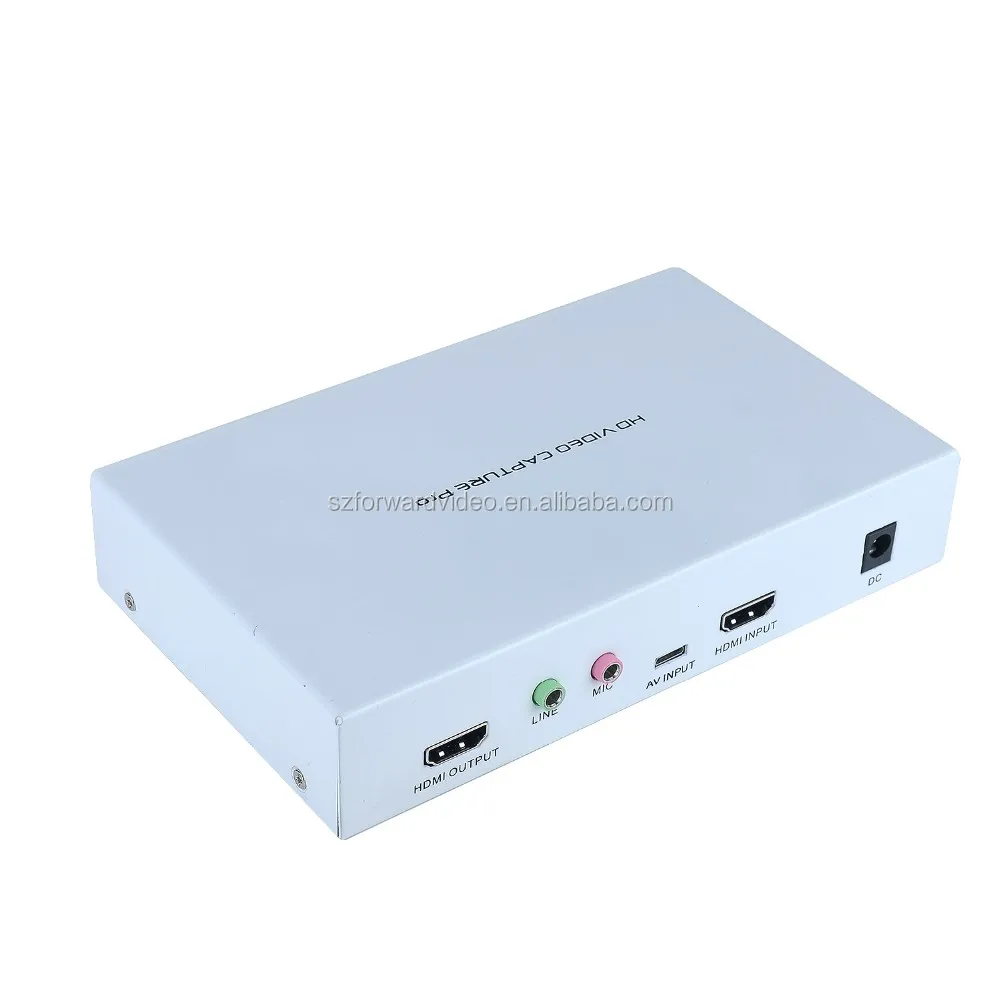

Connections
InterfaceUSB 2.0 Host
Video InputDigital: HDMI
Analog: Component Video, Composite Video
Audio InputDigital: HDMI
Analog: RCA L/R, 3.5mm MicroPhone In
Note: Microphone without pass through fo HDMI input
Video OutputDigital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio OutputDigital: HDMI (Pass-through from HDMI or RCA L/R Input)
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Applicable Connections
HDMIIndustry HD camera, HD Medical endoscope, TV, gameplay, etc
ComponentTV, gameplay, etc
CompositeIndustry camera, Medical endoscope, TV, gameplay, etc

Hardware Extra
CodecHardware H.264 encoder

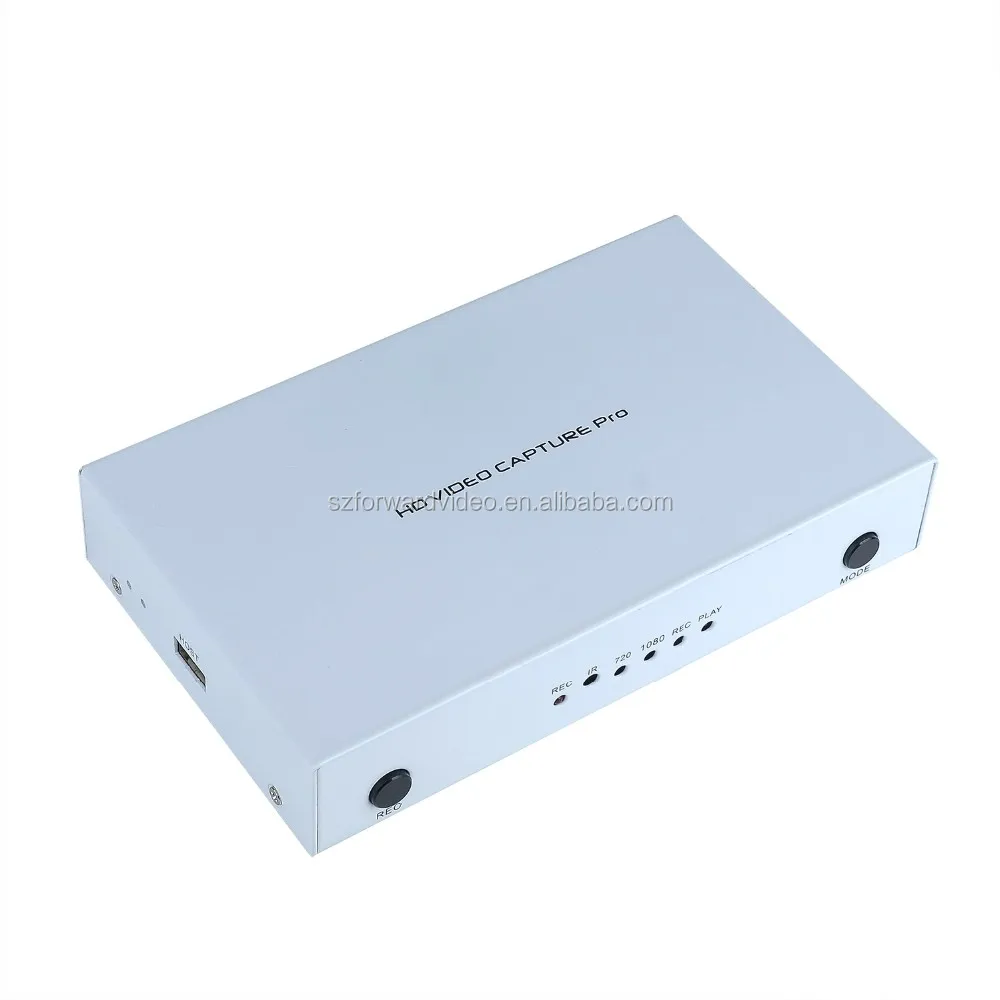

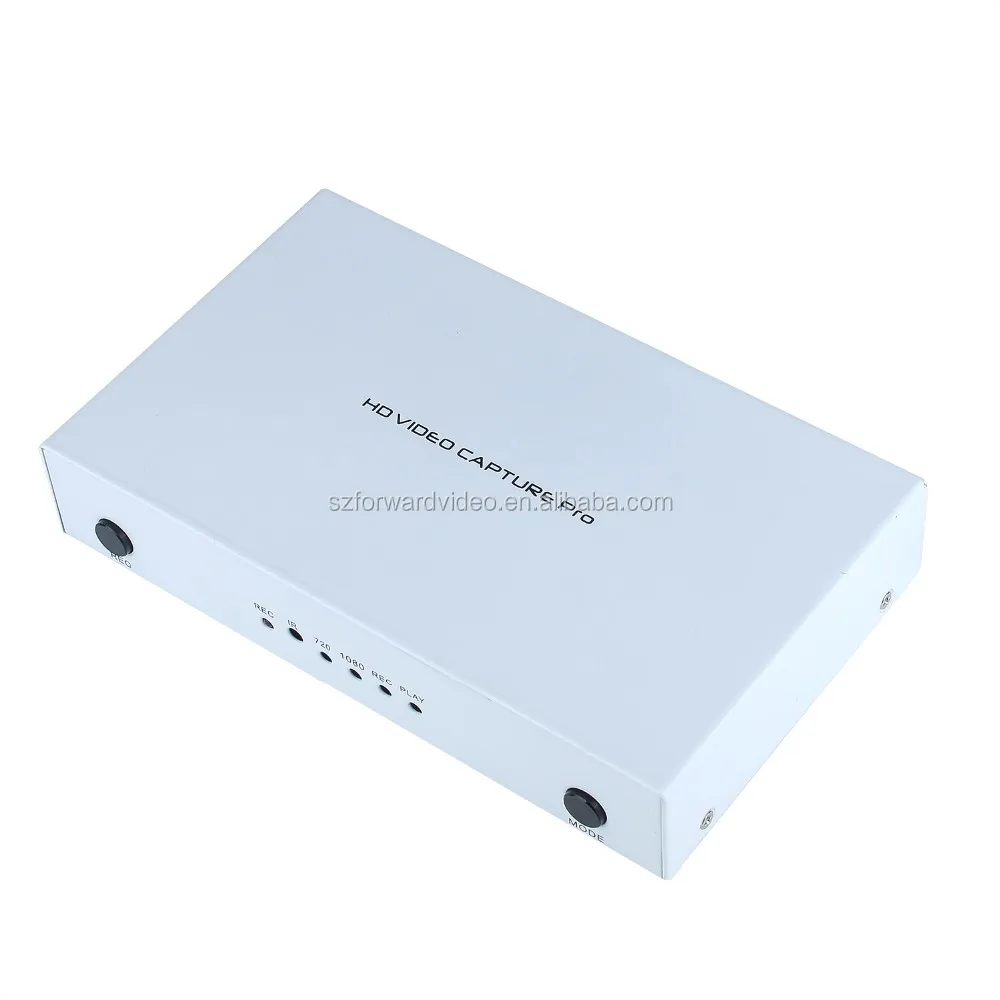

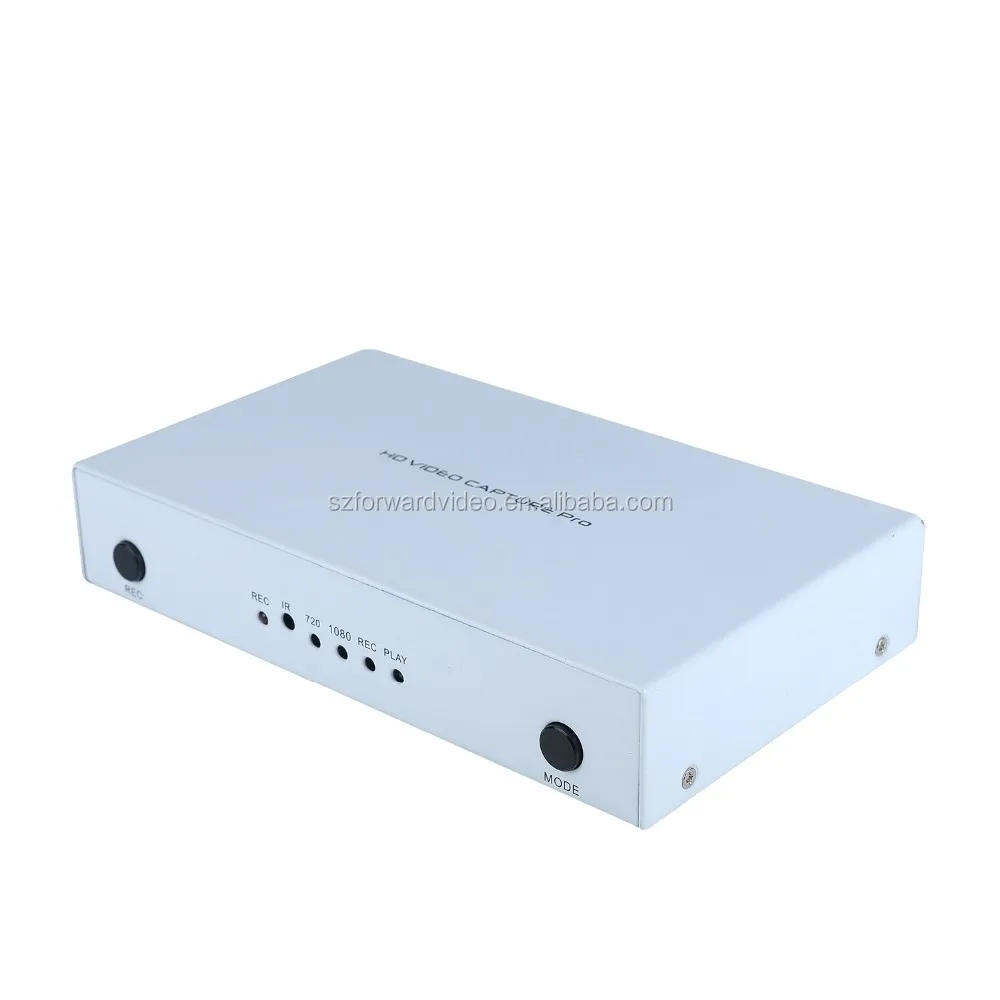

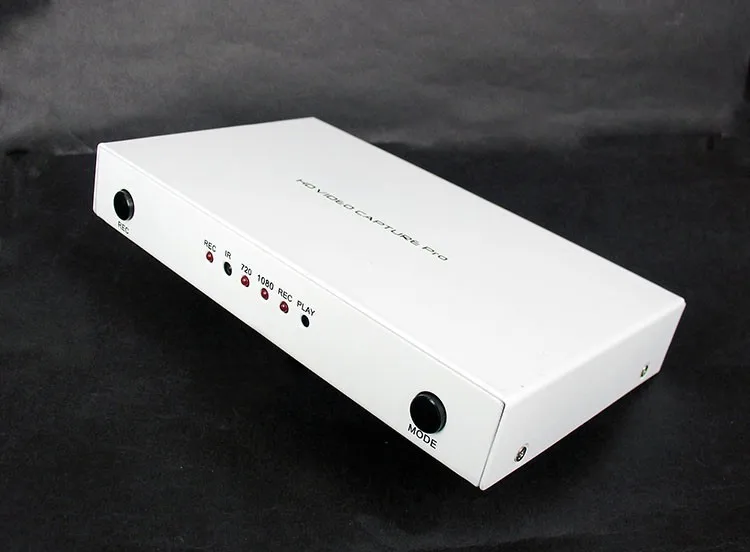

User InterfaceRecord button, mode switch button.
LED indicator for working status
Dimensions160(L) × 100(W) × 30(H) mm.
Weight420g

Package Contents

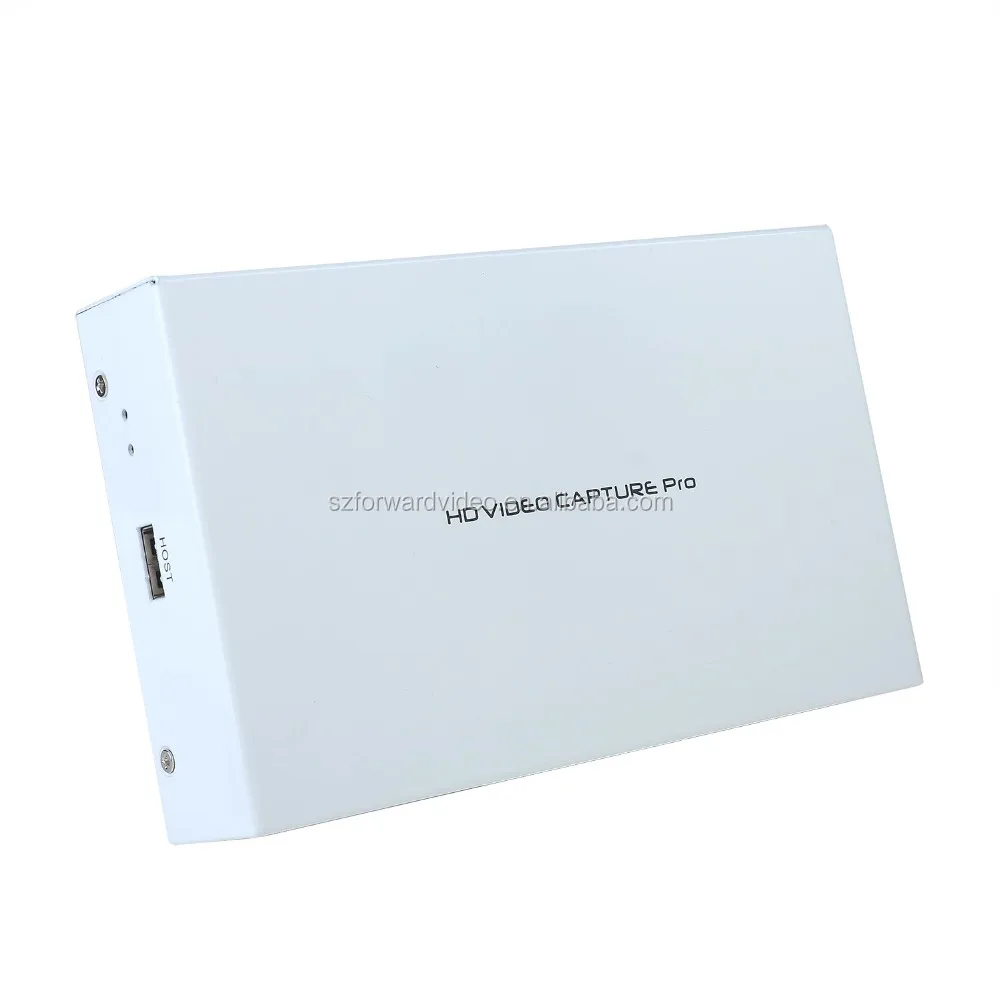

Deviceezcap291 HD Video Capture
OthersDC adaptor, remote controller, AV cable,  Manual

Standards
Storage MediaUSB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour
Power Supply3.5MM DC 5V / 2A
