Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap283S
  • Place of Origin: Guangdong, China (Mainland)
  • Interface Type: HDMI
  • Video Input: Digital: HDMI Analog: Component Video
  • Audio Input: Digital: HDMI Analog: RCA L/R 3.5mm microphone
  • Video Output: HDMI (Pass-through from Component and HDMI
  • Audio Output: Digital: HDMI Analog: 3.5mm Stereo
  • HDMI: WiiU Xbox 360 Xbox One PS4 etc Component:: WiiU Xbox 360 PS3 etc
  • Storage Media: USB Flash Disk Portable Hard Disk
  • Scheduled recording: yes
  • remote control: yes
  • video output: 720P or 1080P

Packaging & Delivery

Packaging Details gift box
15pcs/CTN
G.W.:12KG
HDMI Video Capture HDMI AV Ypbpr CBVS In 720 1080P Switch Support USB Disk SD Card Video Voice Recorder With Micphone ezcap283S

General function:
-Record 1080P HD video into USB disk directly,no PC enquired.
-Pass through 1080P HDMI to display on big screen.
-Supports all video sources input - HDMI,Component,Composite.
-Record your voice with game video together through microphone input.
-With RTC(Real Time Clock) function.
-With Remote Control, can control video source,record quality and snapshot, etc
-With Timing Schedule functiion for ezcap283S model













Overview:

1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually.


More video input choice: HDMI, Component Video, Composite Video. With 1080P HDMI Pass-through, you can mornitoring HD video when you're recording it. Also with MIC in, can record voice with the video together, with volume adjust button, you can change the input volume of your mic.

Directly save HD video to USB flash or HDD



With directly connect port (HDMI, Compsite and component), make more stable connection

With remote control, you can operate with remote. Also with a  remote expand cable, so can set the device inside a metal case and can remote control it at same time.

  With  schedule record function(pre-set recording time), you can set a specified time in one day or everyday to record. It with a LCD screen shows the current time and the schedule status.


Connections
InterfaceUSB 2.0 Host

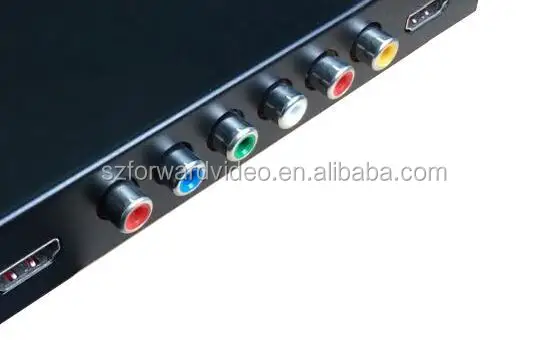

Video InputDigital: HDMI
Analog: Component Video, Composite Video
Audio InputDigital: HDMI
Analog: 3.5mm MicroPhone In, RAC L/R input
Note: Microphone without pass through fo HDMI input
Video OutputDigital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio OutputDigital: HDMI (Pass-through from HDMI or RCA L/R Input)
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Applicable Connections with Game Consoles
HDMIIndustry HD camera, HD Medical endoscope, TV, gameplay, etc
ComponentTV, gameplay, etc
CompositeIndustry  camera, Medical endoscope, TV, gameplay, etc
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec Hardware MPEG4 encoder

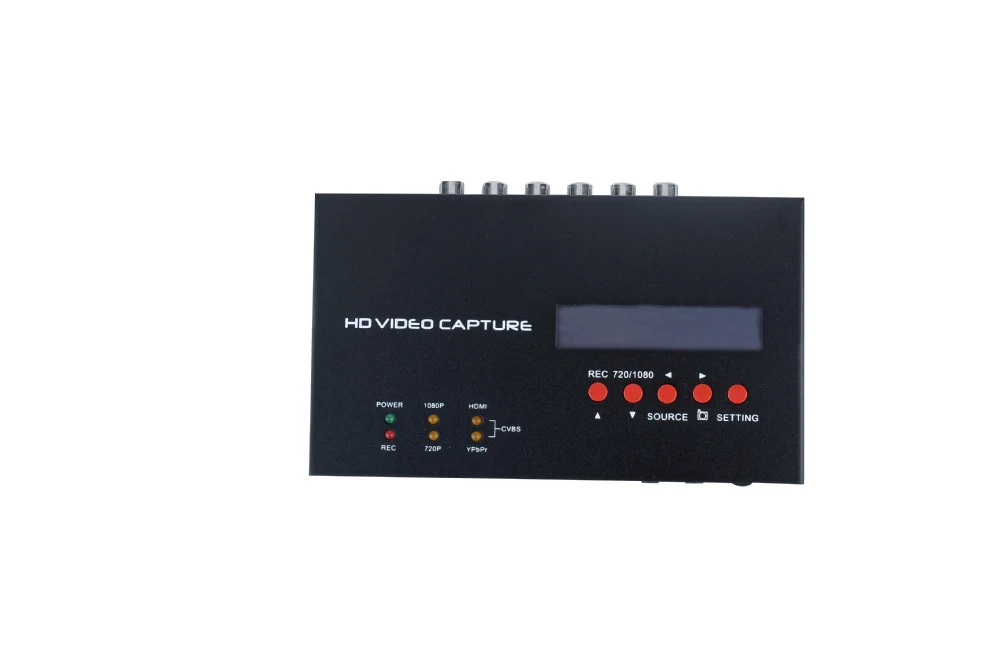

User InterfaceRecord button, 720p/1080p switch button, source change button. Ezcap283s with 5 more buttons for setting time and shedule
LED indicator for working status. with LCD screen for show time and schedule status
infrared reciever and 3.5mm expand port for remote controller
Volume adjust button for microphone
Dimensions155 x 92 x 30
Weight 425g

Package Contents

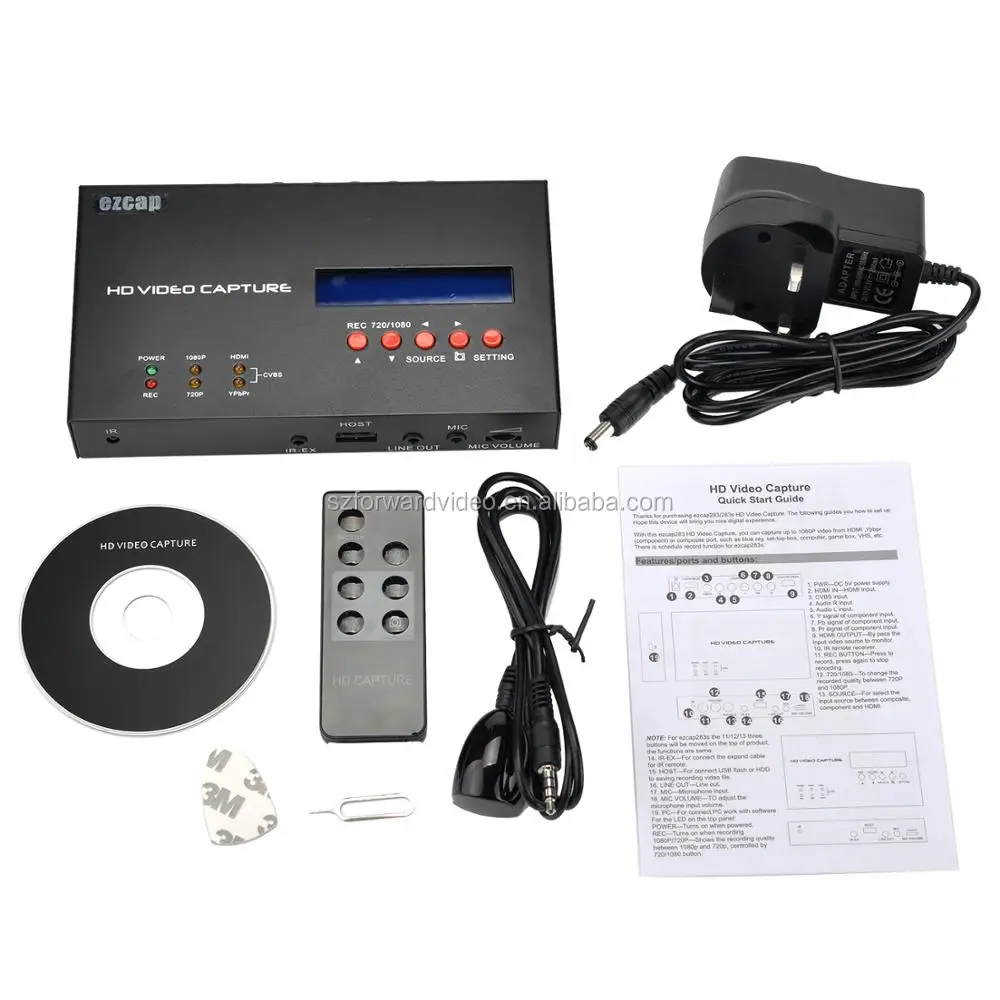

Device HD Video Capture
OthersDC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage MediaUSB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour

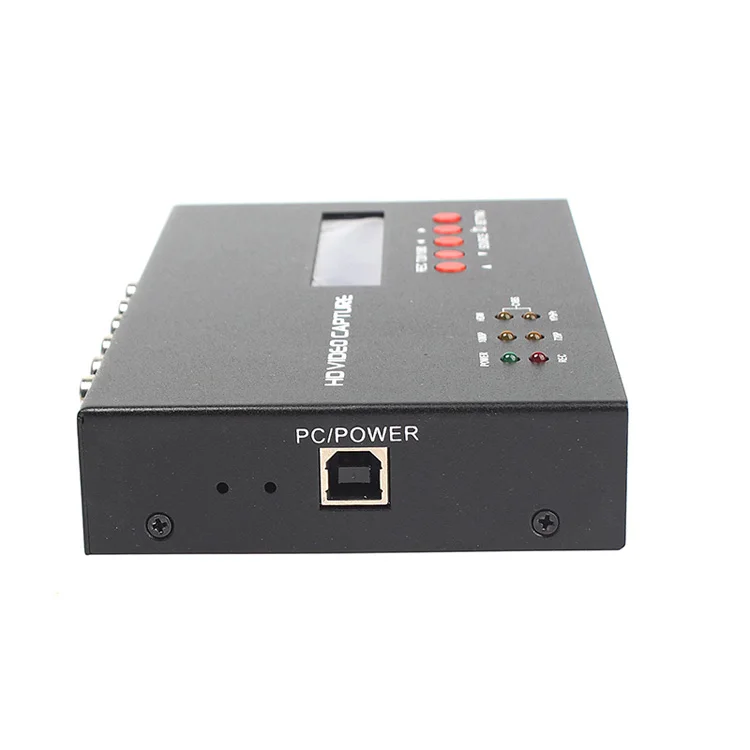

Power SupplyUSB DC 5V / 2A

Applications
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above
