HDMI video capture suppot HDMI AV Ypbpr CBVS video input record video as 720P 1080P with MIC input ezcap283S

FOB Reference Price:Get Latest Price
US $10-80 / Sets | 50 Set/Sets (Min. Order)
Customization:
Customized logo (Min. Order: 200 Sets)
Customized packaging (Min. Order: 200 Sets)

More

Graphic customization (Min. Order: 200 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ezcap
Model Number:
ezcap283S
Place of Origin:
Guangdong, China (Mainland)
Interface Type:
HDMI
Video Input:
Digital: HDMI Analog: Component Video
Audio Input:
Digital: HDMI Analog: RCA L/R 3.5mm microphone
Video Output:
HDMI (Pass-through from Component and HDMI
Audio Output:
Digital: HDMI Analog: 3.5mm Stereo
Storage Media:
USB Flash Disk Portable Hard Disk
Scheduled recording:
yes
remote control:
yes
video output:
720P or 1080P
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
gift box
10pcs/CTN
G.W.:12KG
Port
shenzhen
Lead Time :
Quantity(Sets) 1 - 50 >50
Est. Time(day) 1 To be negotiated
HDMI video capture suppot HDMI AV Ypbpr CBVS video input record video as 720P 1080P with MIC input ezcap283S

General function:
-Record 1080P HD video into USB disk directly,no PC enquired.
-Pass through 1080P HDMI to display on big screen.
-Supports all video sources input - HDMI,Component,Composite.
-Record your voice with game video together through microphone input.
-With RTC(Real Time Clock) function.
-With Remote Control, can control video source,record quality and snapshot, etc
-With Timing Schedule functiion for ezcap283S model



-14808-14809
 ezcap283S (5)ezcap283S (2)ezcap283S (4)ezcap283S (1)ezcap283S-Color Box



 ezcap283S- (5).jpg




Overview:

1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually.


More video input choice: HDMI, Component Video, Composite Video. With 1080P HDMI Pass-through, you can mornitoring HD video when you're recording it. Also with MIC in, can record voice with the video together, with volume adjust button, you can change the input volume of your mic.

Directly save HD video to USB flash or HDD



With directly connect port (HDMI, Compsite and component), make more stable connection

With remote control, you can operate with remote. Also with a  remote expand cable, so can set the device inside a metal case and can remote control it at same time.

  With  schedule record function(pre-set recording time), you can set a specified time in one day or everyday to record. It with a LCD screen shows the current time and the schedule status.


Connections
InterfaceUSB 2.0 Host
Video InputDigital: HDMI
Analog: Component Video, Composite Video
Audio InputDigital: HDMI
Analog: 3.5mm MicroPhone In, RAC L/R input
Note: Microphone without pass through fo HDMI input
Video OutputDigital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio OutputDigital: HDMI (Pass-through from HDMI or RCA L/R Input)
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Applicable Connections with Game Consoles
HDMIIndustry HD camera, HD Medical endoscope, TV, gameplay, etc
ComponentTV, gameplay, etc
CompositeIndustry  camera, Medical endoscope, TV, gameplay, etc
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec Hardware MPEG4 encoder

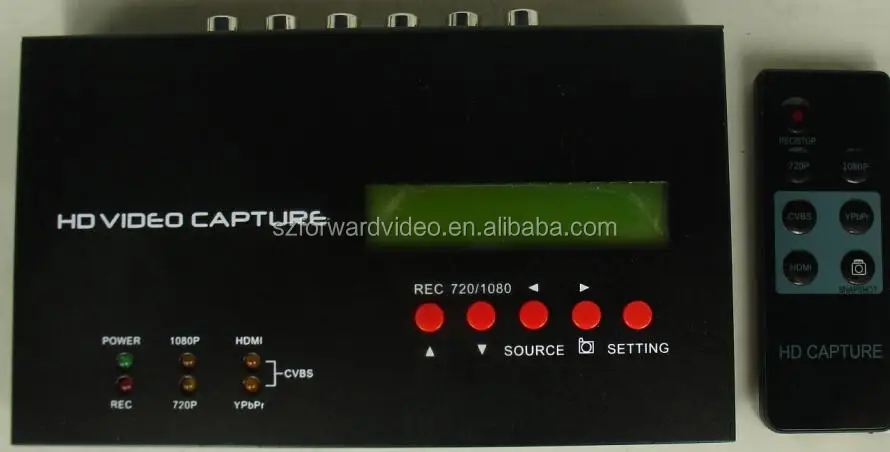

User InterfaceRecord button, 720p/1080p switch button, source change button. Ezcap283s with 5 more buttons for setting time and shedule
LED indicator for working status. with LCD screen for show time and schedule status

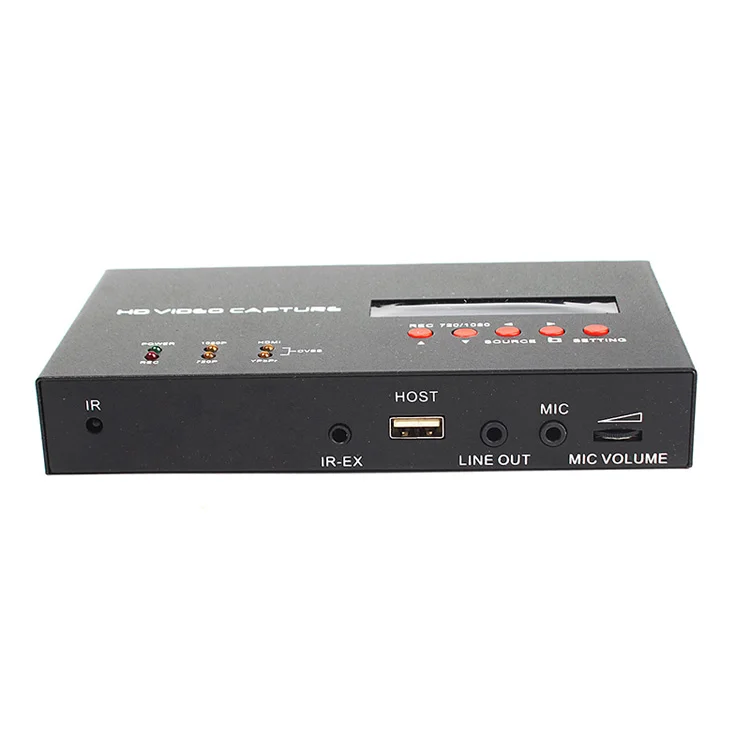

infrared reciever and 3.5mm expand port for remote controller

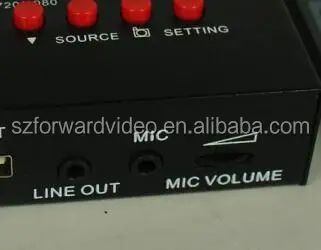

Volume adjust button for microphone
Dimensions155 x 92 x 30
Weight 425g

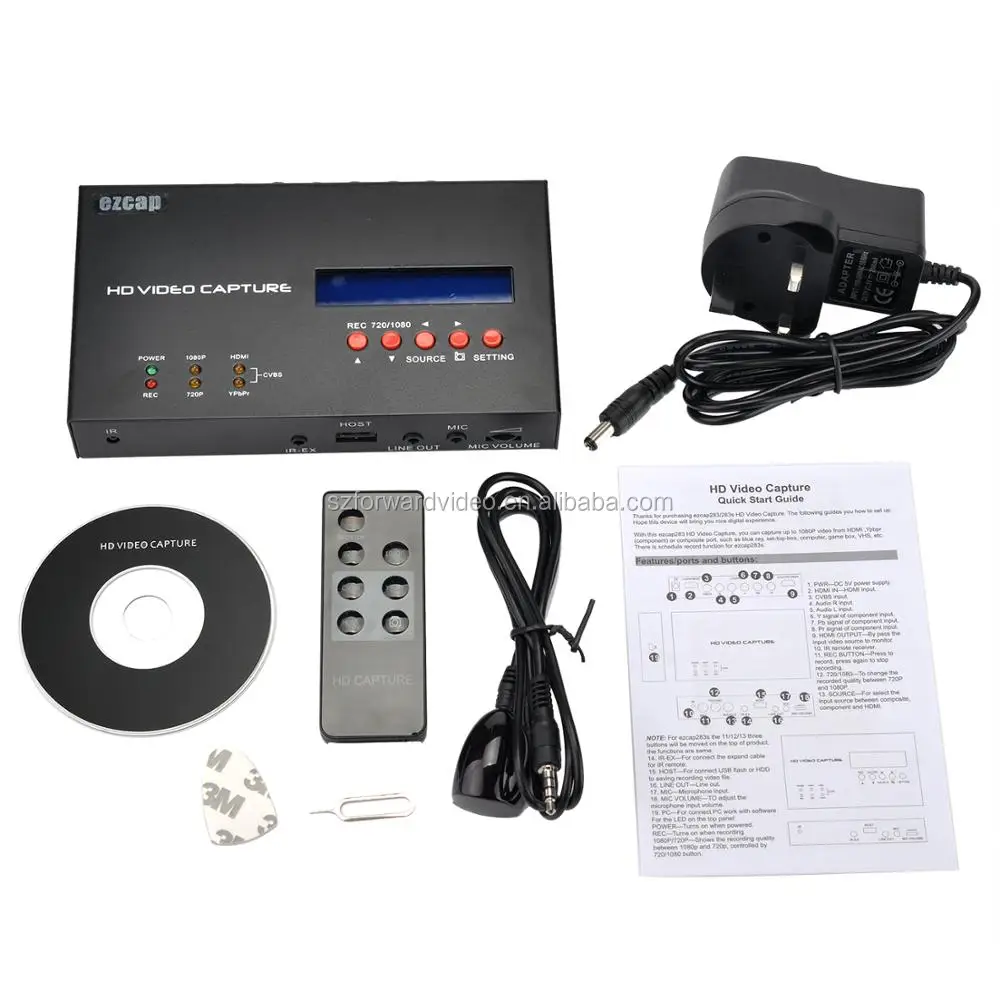

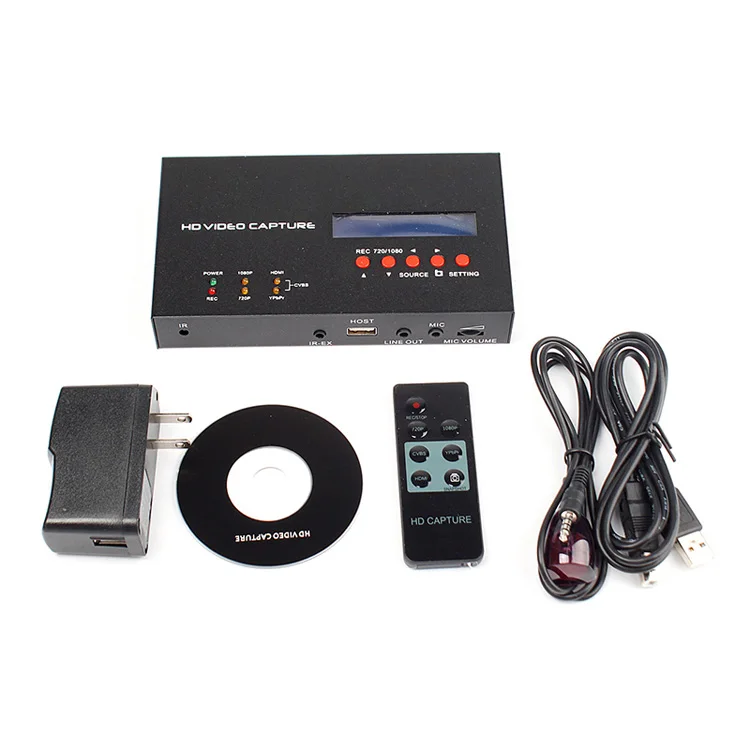

Package Contents
Device HD Video Capture
OthersDC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage MediaUSB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour

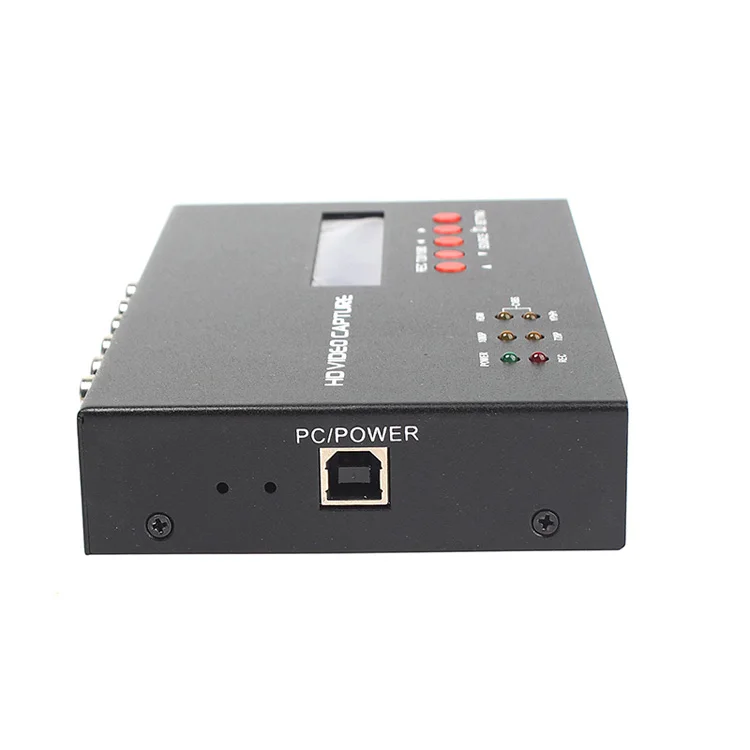

Power SupplyUSB DC 5V / 2A

Applications
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above
