Forward Video Standalone 1080P hdmi video grabber Composite Component HD Video Capture ezcap281

FOB Reference Price:Get Latest Price
$40.00 - $50.00 / Units | 50 Unit/Units hdmi video grabber (Min. Order)
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
China (Mainland)
USB 2.0 Host, SD Card
Video Input:
HDMI,Component Video, Composite Video
Audio Input:
HDMI,RCA L/R, 3.5mm MicroPhone In
Video Output:
HDMI (Pass-through from HDMI or Component or Composite Input)
Audio Output:
HDMI,3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)
Storage Media:
USB Flash Disk, Portable Hard Disk, SD Card. No support exFAT
Record Format:
Video: MP4, Audio: AAC Stereo
Record Quality:
Max: 18Mbps@1080P 30fps
Arcsoft Showbiz
hdmi video grabber
Supply Ability
Supply Ability:
60000 Unit/Units per Month hdmi video grabber
Packaging & Delivery
Packaging Details
Gift box 20pcs/Carton Carton size:42.5*24*32.5cm G.W.:12KG
Lead Time :
samples:1day;Below:5days; below 10K:5-22days;over 10K: 25-28days
Forward Video Standalone 1080P  hdmi video grabber Composite Component HD Video Capture ezcap281
-Record 1080P HD video into USB disk,HDD directly,SD Card,no PC required.
-Pass through 1080P HDMI to display on big screen.
-Support Line audio out.
-Supports all video sources input - HDMI,Component,Composite,CVBS.
-Record your voice with game video together through microphone input.
-With RTC(Real Time Clock) function.

The ezcap281  HD 1080P Video Capture is a box that records and streams your gameplay up to 1080P. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.

ezcap281  HD 1080P Video Capture  provides the flexible connectivity with HDMI,Component and Composite  inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better, it's no PC enquired, Simply One click on the Record Button, 1080p recording is done right away.

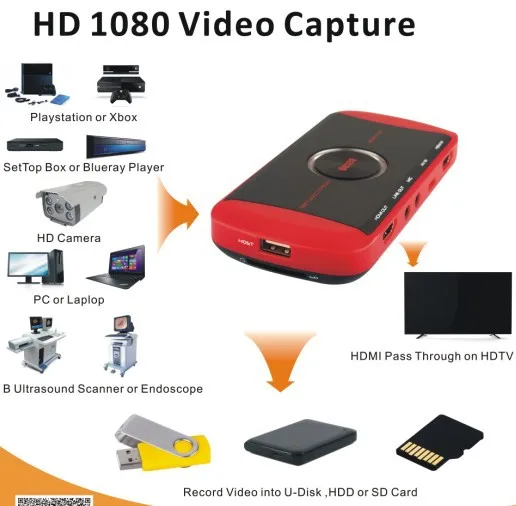

Capture 1080P video through HDMI, YPBPR(Component),AV(Composite) from game consoler ,STB,DVD or other video source, stand along, no PC required, Simply press the recorder button, save to USB flash drive,USB hard disk or SD Card.


- 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay.

- More video input choice: HDMI, Component Video, Composite Video. With 1080P HDMI Passthrough, you can playing HD gameplay when you're recording it. Also with MIC in, can record voice with game together.

- With 1080P HDMI pass through, you can play HD gameplay when you're recording it.

- Portable design - 140(L) × 74(W) × 23(H) mm,bring it out of your room and share the gameplay and fun with your friends anywhere.

- Both USB Flash Disk and SD Card - more memories choice!
- With RTC(Real Time Clock) function, manage recording files easily.
 - Good Heat-dissipation design: the large areas of tiny holes ensure the stability of device for longterm operation and greater the raliability and longer service life.

- Included video editing software, you can do editing and converting easily!

1, Interface: USB 2.0 Host, SD Card Slot
2, Video Input: Digital: HDMI
                        Analog: Component Video,Composite Video
3, Audio Input: Digital: HDMI
                       Analog: RCA L/R, 3.5mm microphone
4, Video Output: HDMI (Pass-through from Component and HDMI Input)
5, Audio Output: Digital: HDMI (Pass-through from HDMI Input or Component or Composite Input)
                           Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)


6, Applicable Connections with Mainstream Game Consoles:
    HDMI: WiiU, Xbox 360, Xbox One, PS4
    Component :WiiU, Xbox 360, PS3

    Composite: WiiU, Xbox 360, PS3

Note:HDCP connets cann't be recorded.

7. Hardware Extra:

Codec Hardware MPEG4 encoder
User InterfaceOn-board Hot Button for one-click recording
LED indicator for working status
Dimensions140(L) × 74(W) × 23(H) mm


Storage MediaUSB Flash Disk, Portable Hard Disk, SD Card
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour
Power SupplyUSB DC 5V / 2A
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above

9, Resolution:

    Input/ Pass-through:
    720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
    (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
    1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x
    1080 (60p)


   720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
   (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
   1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x
   1080 (30p)

Package Contents:
- ezcap281 HD 1080P Video Capture
- Component/Composite video audio connection adapter
- Power supply adapter - Mini USB, 5V/2A
- Manual
- Video editing software CD


Pictures for ezcap281:

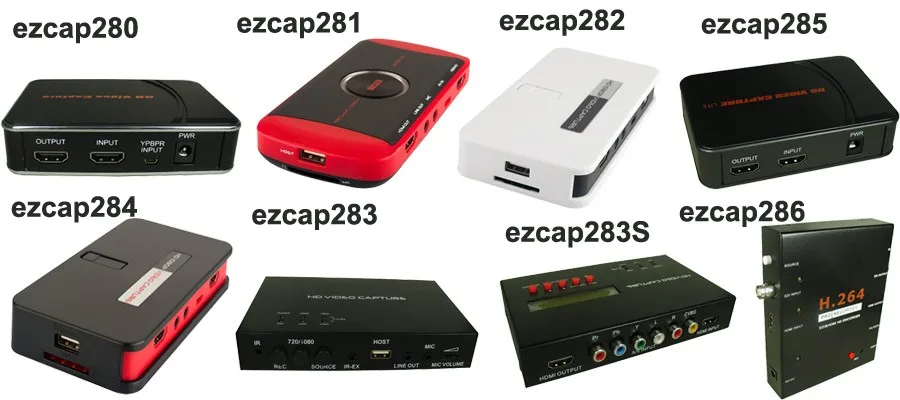

Other Models:
