SDI HDMI video capture SDI HDMI game capture with remote control ezcap286

FOB Reference Price:Get Latest Price
  • 50 - 499 Sets
    US $100.00
  • >=500 Sets
    US $95.00
Report Suspicious Activity
Overview
Quick Details
Brand Name:
ezcap
Model Number:
ezcap286
Place of Origin:
Guangdong, China (Mainland)
Interface Type:
HDMI/SDI
Video Input:
Digital: HDMI/SDI
Audio Input:
HDMI, SDI
Video Output:
HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)
HDMI:
Industry HD camera, HD Medical endoscope, TV, gameplay, etc
SDI:
HD camera, HD Medical endoscope
Storage Media:
USB Flash Disk Portable Hard Disk
Storage Media Max Capacity::
USB / 2T, SD / 64G
Codec:
Hardware MPEG4 encoder
SupplyAbility
SupplyAbility:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
gift box
15pcs/CTN
G.W.:12KG
Port
shenzhen
Lead Time :
10days
SDI HDMI video capture SDI HDMI game capture with remote control -ezcap286


General information:

-Record 1080P HD video into USB disk directly,no PC enquired.
-Pass through 1080P HDMI to display on big screen.
-Supports video sources input - HDMI,SDI.
-Record your voice with game video together through microphone input.
-With Remote Control, can control video source,record quality and snapshot, etc



SDI and HDMI input, 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually.

With SDI and HDMI input and output pass through.

Directly save HD video to USB flash or HDD

With remote control, you can operate with remote. Also with a  remote expand cable, so can set the device inside a metal case and can remote control it at same time.

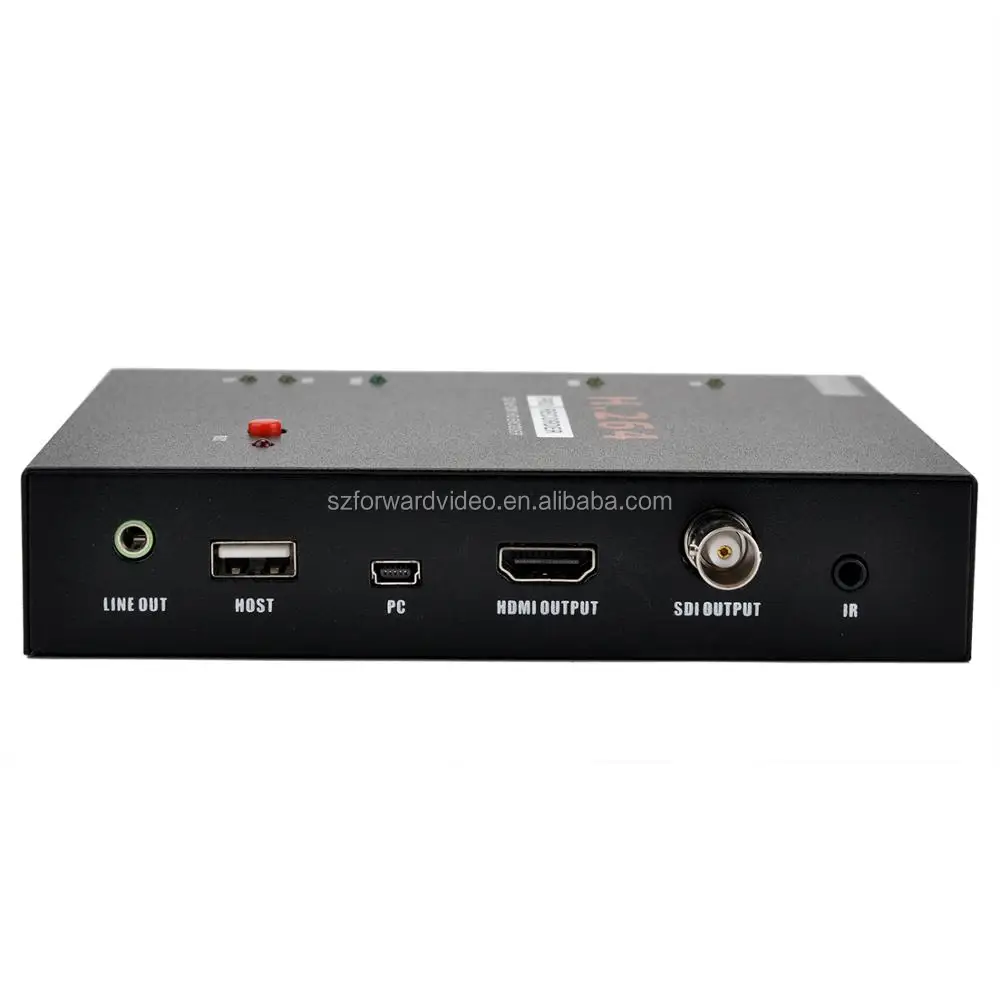

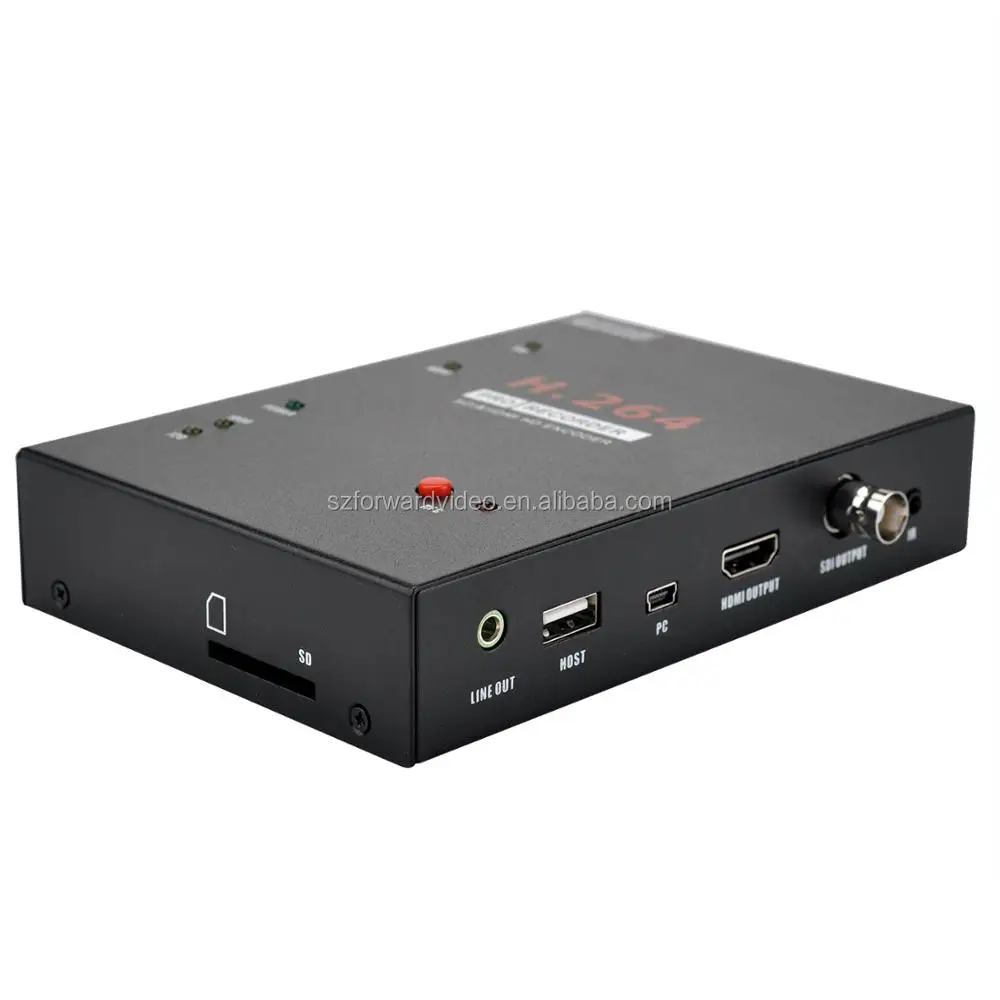

Connections

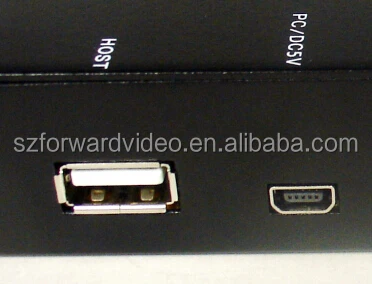

InterfaceUSB 2.0 Host
Video InputHDMI, SDI
Audio InputHDMI, SDI
Video OutputDigital: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)

Applicable Connections with Game Consoles
HDMIIndustry HD camera, HD Medical endoscope, TV, gameplay, etc
SDIHD camera, HD Medical endoscope
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec Hardware MPEG4 encoder

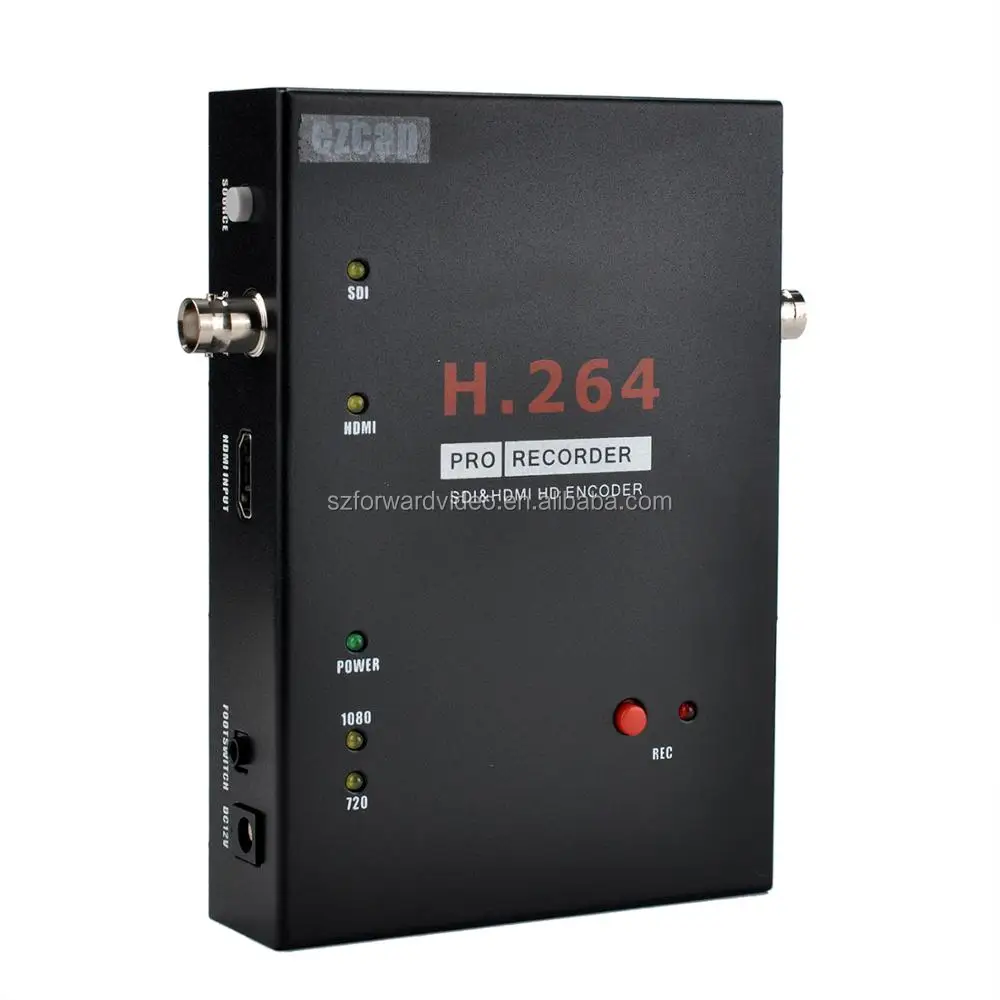

User InterfaceRecord button, 720p/1080p switch button, source change button. Ezcap283s with 5 more buttons for setting time and shedule
LED indicator for working status.
3.5mm expand port for remote controller
Dimensions132*104*27MM
Weight375g

Package Contents
Deviceezcap286 HD Video Capture
OthersDC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage MediaUSB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour
Power SupplyUSB DC 12V / 3A

Applications
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above
