Quick Details

  • Brand Name: EZCAP
  • Model Number: EZCAP286
  • Place of Origin: Guangdong, China (Mainland)
  • COLOR: BLACK
  • Interface: USB 2.0 HOST
  • VIDEO INPUT: SDI , HDMI
  • AUDIO INPUT: SDI , HDMI
  • VIDEO OUTPUT: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)
  • Codec: Hardware MPEG4 encoder
  • Dimensions: 132*104*27MM
  • WEIGHT: 375g
  • Storage Media: Max Capacity: USB / 2T, SD / 64G
  • Record Quality: Max: 18Mbps@1080P 30fps

Packaging & Delivery

Packaging Details: gift box; 15pcs/CTN; G.W.:12KG
Specifications:


1.SDI and HDMI input, 1080P recording with one click, no PC required.

2.  Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc.

3.Enough stock and shipped fastly
4.12 warranty period
5.Good service

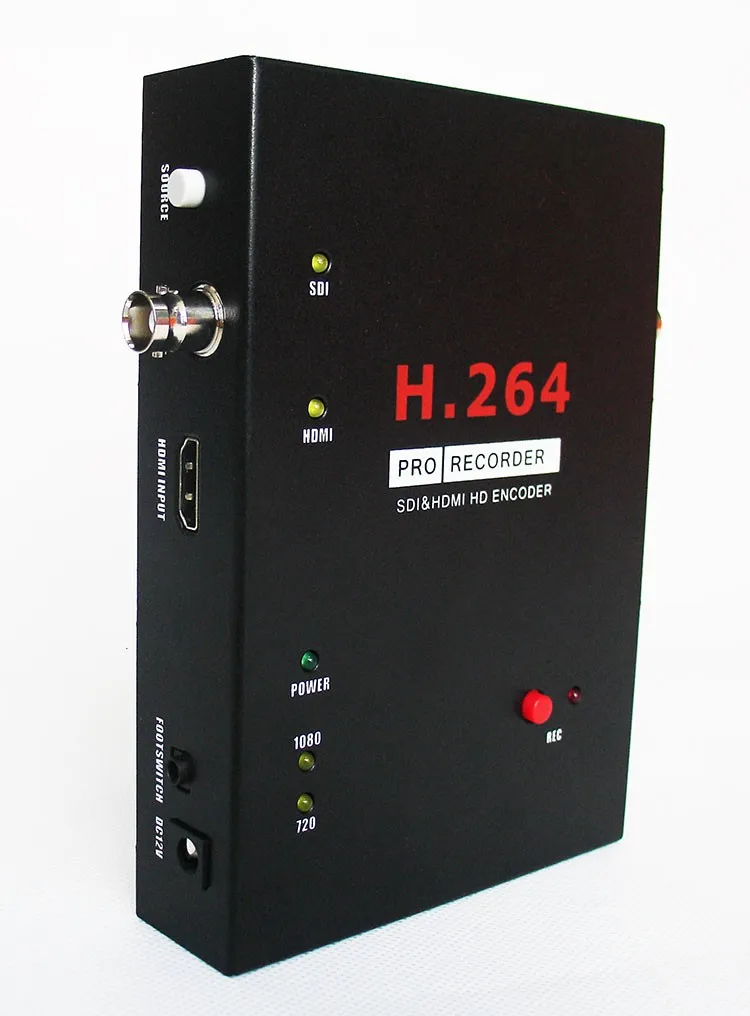

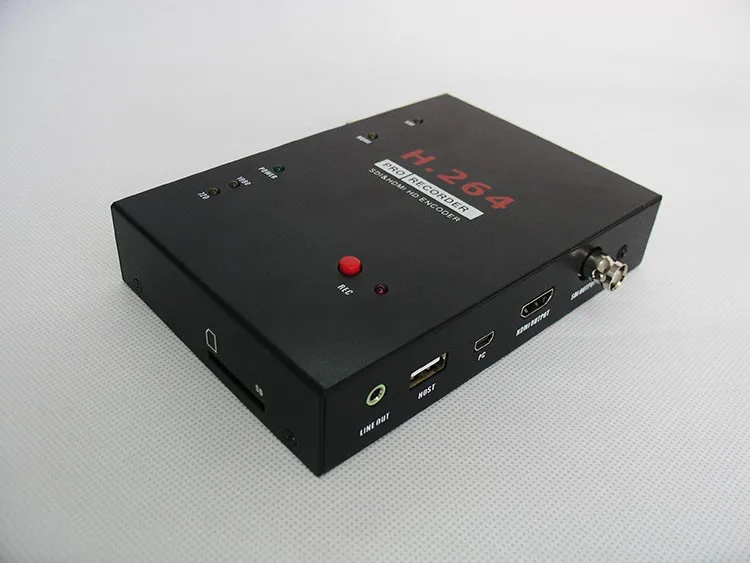

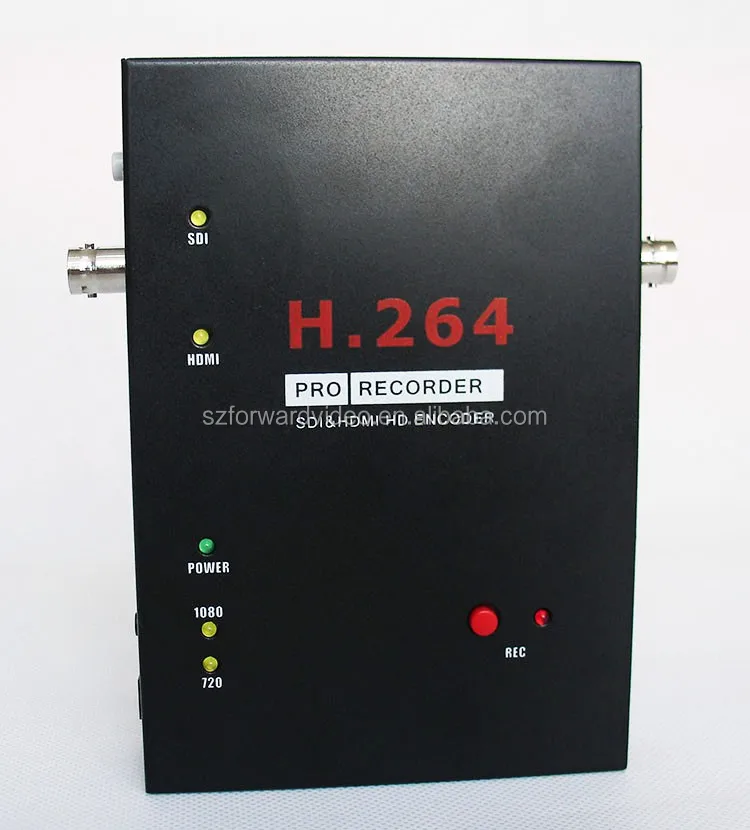

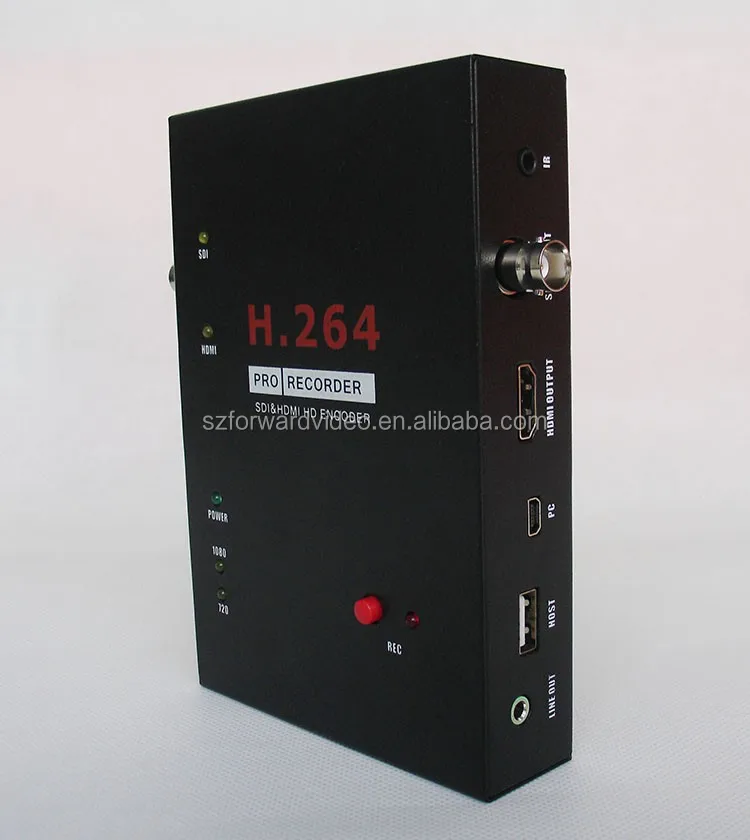

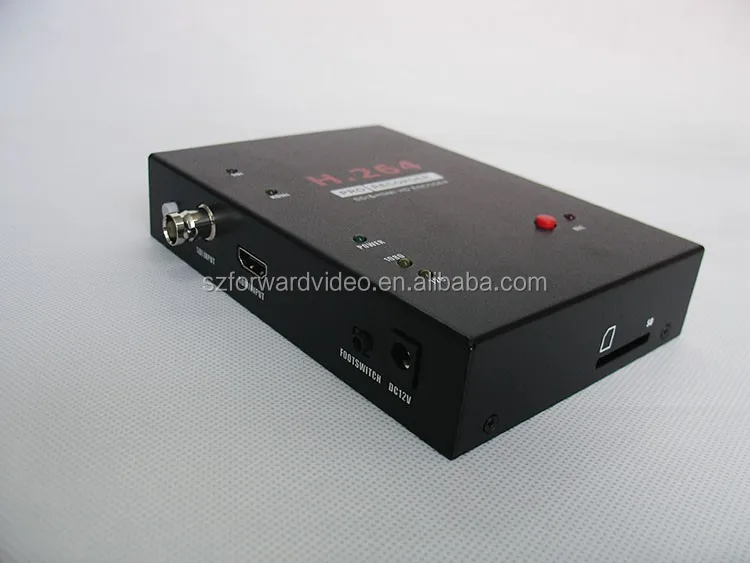

SDI and HDMI video capture-----EzCAP286










SDI and HDMI input, 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your HD Video: HD camera, medical imaging, TV, gameplay, etc. You can set the record quality between 720p and 1080p, and also with a button so you can choose input video manually.



With SDI and HDMI input and output pass through.


Directly save HD video to USB flash or HDD


With remote control, you can operate with remote. Also with a  remote expand cable, so can set the device inside a metal case and can remote control it at same time.

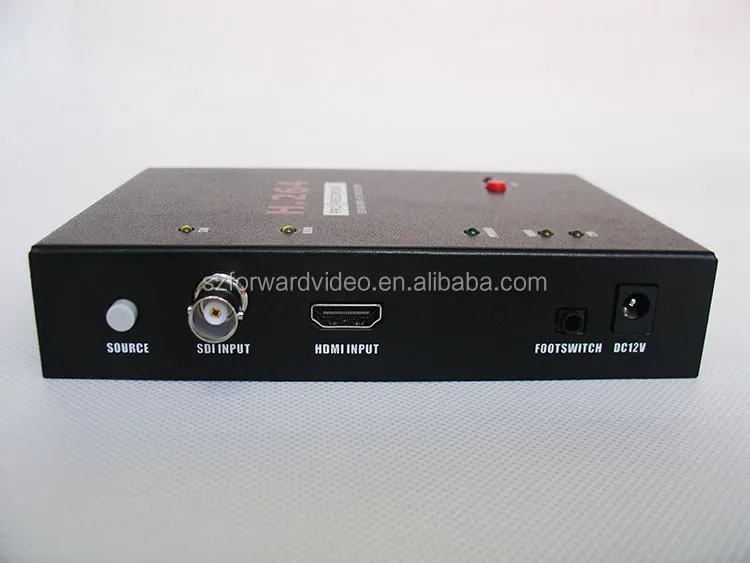

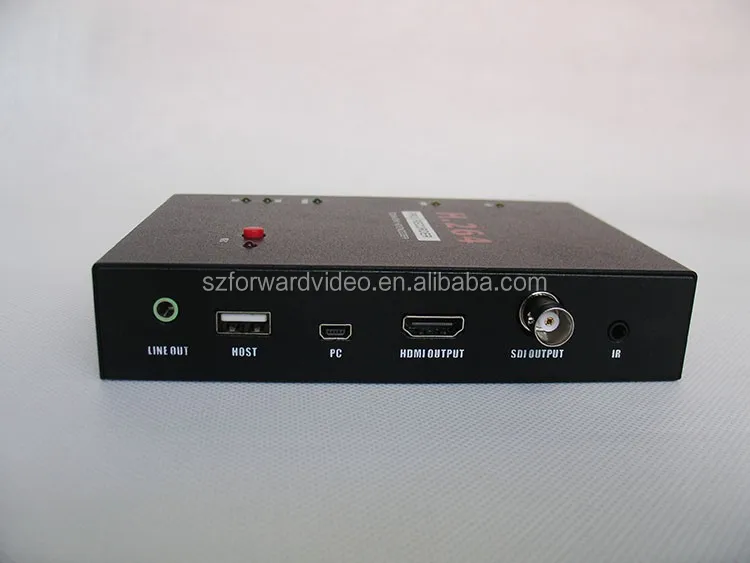

Connections
InterfaceUSB 2.0 Host
Video InputHDMI, SDI
Audio InputHDMI, SDI
Video OutputDigital: HDMI (Pass through from HDMI and SDI), SDI (Pass through from SDI)

Applicable Connections with Game Consoles
HDMIIndustry HD camera, HD Medical endoscope, TV, gameplay, etc
SDIHD camera, HD Medical endoscope
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec Hardware MPEG4 encoder
User InterfaceRecord button, 720p/1080p switch button, source change button. Ezcap283s with 5 more buttons for setting time and shedule
LED indicator for working status.
3.5mm expand port for remote controller
Dimensions132*104*27MM
Weight375g

Package Contents
Deviceezcap286 HD Video Capture
OthersDC adaptor, USB cable, remote controller, remote expand cable, Software CD, Manual

Standards
Storage MediaUSB Flash Disk, Portable Hard Disk
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
ResolutionInput / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Note: Upscaling is not supported.
Record FormatVideo: MP4, Audio: AAC Stereo
Record QualityMax: 18Mbps@1080P 30fps
Record FileMax: 2GB / Per File, With RTC (Real Time Clock)
Record PlaceMax: 140MB / Minute, 8.4GB / Hour
Power SupplyUSB DC 12V / 3A

Applications
SoftwareArcsoft Showbiz
Video EditingTimeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video ExportUpload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating SystemWindows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPUIntel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory4 GB RAM
Graphics CardVGA card with support for DirectX 10.0c or above
