Quick Details

  • Brand Name: ezcap
  • Model Number: ezcap280
  • Place of Origin: Guangdong, China (Mainland)
  • Interface:: USB 2.0 Host
  • Video Input:: Digital: HDMI,Analog: Component Video
  • Audio Input:: Digital: HDMI,Analog: RCA L/R, 3.5mm microphone
  • Video Output:: HDMI (Pass-through from Component and HDMI
  • Audio Output:: Digital: HDMI,Analog: 3.5mm Stereo

Packaging & Delivery

Packaging Details: Gift box
Carton Size:42.5*24*32.50cm
Delivery Detail: 3 days for sample,25days below 1000pcs
The ezcap280 HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.

ezcap280 HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better, it's no PC enquired, Simply 1 click on the Record Button, 1080p recording is done right away.

- 1080P recording with one click, no PC enquired. You only simple insert one USB Flash disk to get it anywhere, anytime.
- Bring it out of your room and share the gameplay and fun with your friends anywhere.
- Easy to use, no any set-up. You just click RECORD button to record your gameplay, and re-click to stop recording.
- With 1080P HDMI by through, you can play HD gameplay when you're recording it.
- With extral audio input, allows you record your own live voice from microphone with gameplay video together.

- Interface: USB 2.0 host for USB Flash disk or USB hard disk
- Video Input: Digital / HDMI, Analog / Component Video.
- Audio Input: Digital / HDMI, Analog / RCA Audio L/R, 3.5mm Line In, 3.5mm Microphone In.
- Video Output: Digital / HDMI (Pass-through from HDMI or Component).
- Audio Output: Digital / HDMI(Pass-through from HDMI or Audio RCA L/R Input), Analog / 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)

Application Connections with Game Consoles
- HDMI: WiiU, Xbox 360, Xbox One, PS4
- Component: WiiU, Xbox 360, PS3

Hardware Extra
- Codec: Hardware MPEG4 encoder
- User Interface: On-board Hot Button for one-click recording / streaming, LED indicator for working sratus.
- Dimension: 110 * 75 * 27 mm
- Weight: 135g

- Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
- Input Resolution / Pass-through:
  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
  1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

- Capture Resolution:
  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
  1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)

- Record Format: Video / AVI MPEG4, Audio / AAC Stereo
- Record Quality: Max 18Mbps@1080P 30fps
- Record File: Max 2GB/per file
- Record Place: Max 140MB/minute, 8.4GB/hour
- Power Supply: DC 5V 2A

Package Contents:
- ezcap280 1080P HDMI/YPbPr Recorder
- Component video audio connection cable
- HDMI cable
- Power supply
- Manual

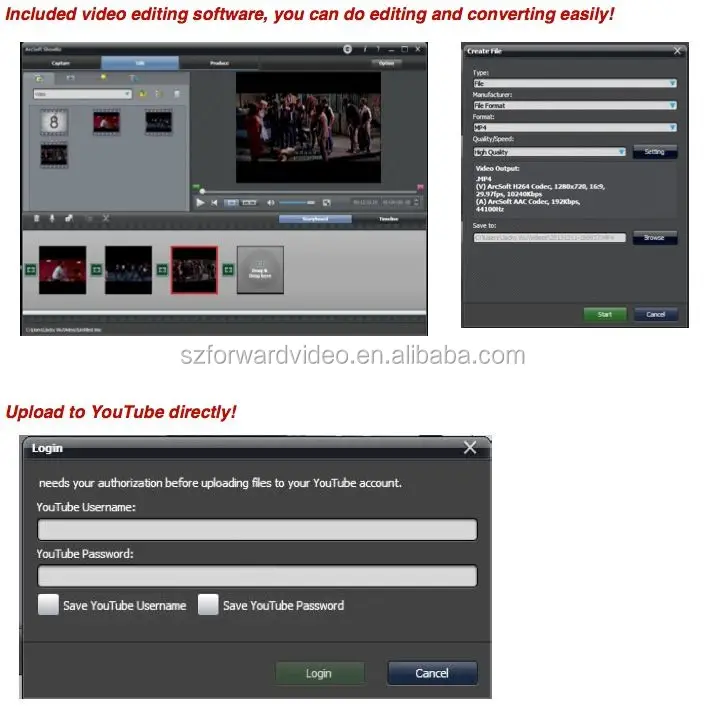

- Video editing software CD
